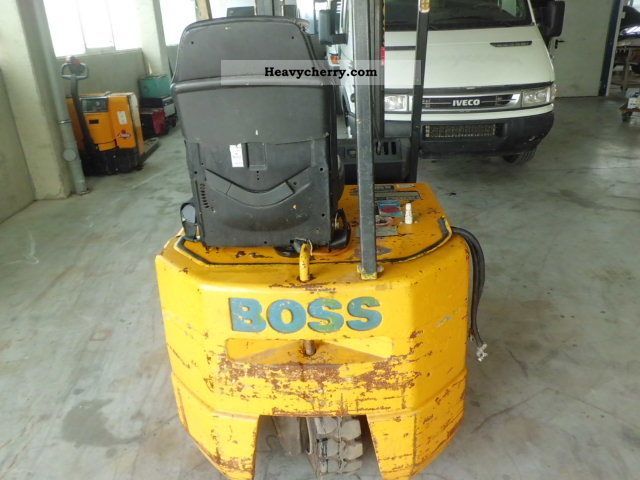

Steinbock Boss JE 10-50
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 5.38 ft in (1638 mm) |
| Overall Width | 3.21 ft in (978 mm) |
| Overall Height - Mast Lowered | 8.33 ft in (2538 mm) |
| Wheelbase | 3.49 ft in (1063 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 4.16 ft in (1265 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Max Fork Spread | 38.51 in (978 mm) |
| Lower Speed | 94.49 ft/min (28.8 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 2204.63 lb (1000 kg) |
| Lift Speed | 94.49 ft/min (28.8 m/min) |
Engine
| Engine Model | Electric motor |
| Power | 5.4 hp (4 kw) |
Operational
| Operating Weight | 6239.1 lb (2830 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 7.8 mph (12.4 km/h) |
