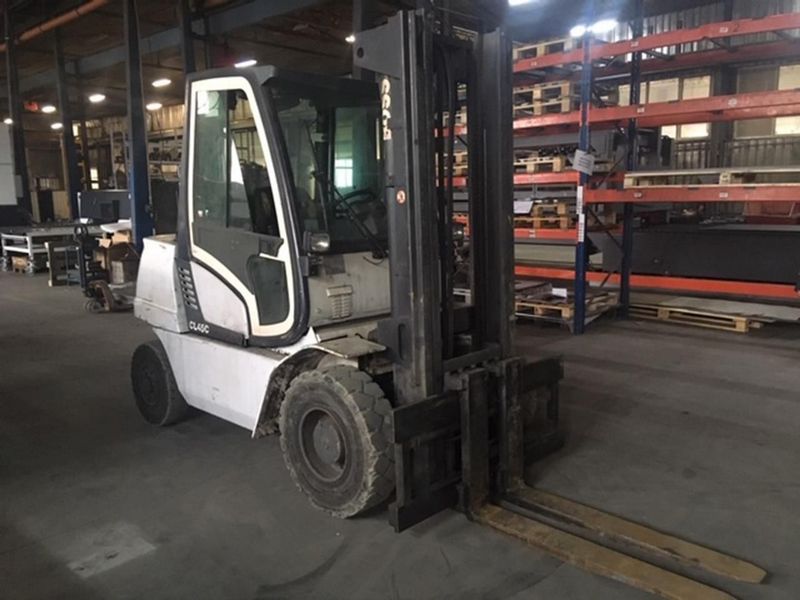

Steinbock Boss CL 45C
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.85 ft in (3000 mm) |
| Overall Width | 4.01 ft in (1220 mm) |
| Overall Height - Mast Lowered | 8.08 ft in (2460 mm) |
| Wheelbase | 6.52 ft in (1985 mm) |
| Ground Clearance | 5.32 in (135 mm) |
| Height To Top Of Overhead Guard | 7.71 ft in (2350 mm) |
| Max Fork Height | 11.49 ft in (3500 mm) |
| Turning Radius | 8.7 ft in (2650 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 11 degrees |
| Max Fork Spread | 55.12 in (1400 mm) |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Lift Speed | 110.24 ft/min (33.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Engine Model | 4.3 V6 |
| Power | 89.9 hp (67 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 244.1 cu in (4 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 14418.3 lb (6540 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.6 mph (25 km/h) |
