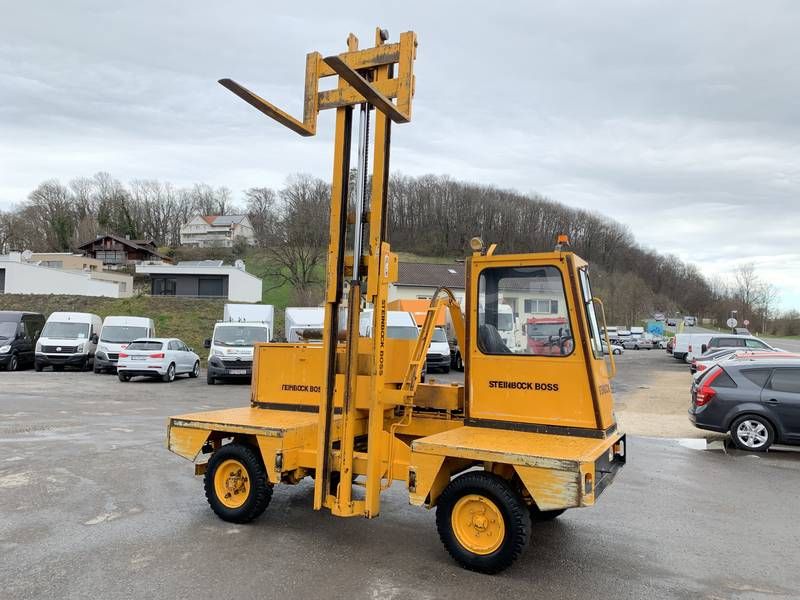

Steinbock Boss CL 30H
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 11.98 ft in (3650 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Overall Height - Mast Lowered | 7.62 ft in (2320 mm) |
| Wheelbase | 5.53 ft in (1685 mm) |
| Ground Clearance | 18.12 in (460 mm) |
| Height To Top Of Overhead Guard | 7.35 ft in (2240 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Right Angle Stack | 0.33 ft in (100 mm) |
| Turning Radius | 7.75 ft in (2360 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 51.19 in (1300 mm) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 118.12 ft/min (36 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Engine Model | L4 |
| Power | 59.1 hp (44 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 181 cu in (3 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 10317.7 lb (4680 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.7 mph (20.3 km/h) |
