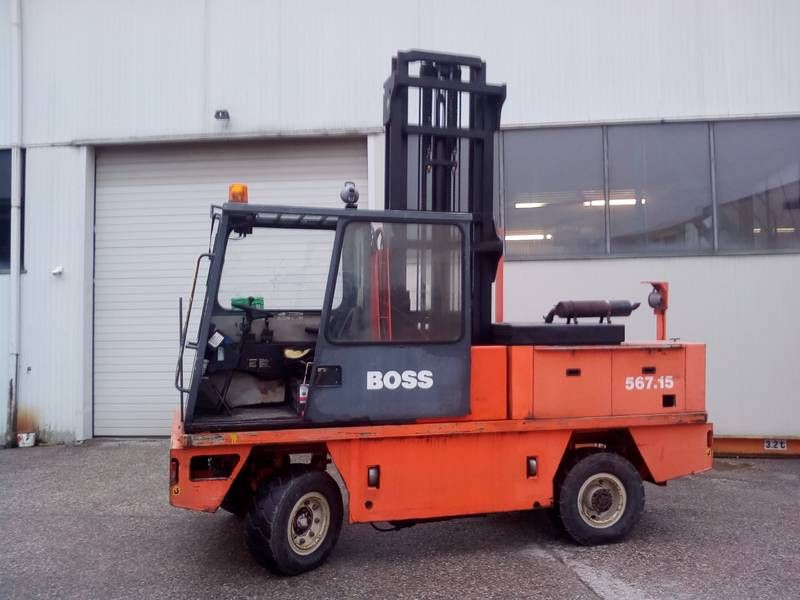

Steinbock Boss CD 33H
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 11.98 ft in (3650 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Overall Height - Mast Lowered | 7.62 ft in (2320 mm) |
| Wheelbase | 5.53 ft in (1685 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 7.35 ft in (2240 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.75 ft in (2360 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 51.19 in (1300 mm) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 7275.26 lb (3300 kg) |
| Lift Speed | 118.12 ft/min (36 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 704.30 |
| Power | 53.7 hp (40 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 180.4 cu in (3 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 10890.9 lb (4940 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.6 mph (20.2 km/h) |
