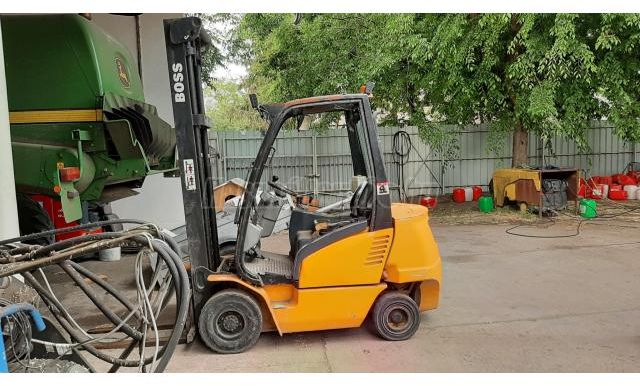

Steinbock Boss CD 20C
Browse All Steinbock Boss or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.55 ft in (2300 mm) |
| Overall Width | 3.29 ft in (1000 mm) |
| Overall Height - Mast Lowered | 7.17 ft in (2185 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2085 mm) |
| Max Fork Height | 10.18 ft in (3100 mm) |
| Turning Radius | 6.73 ft in (2050 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Max Fork Spread | 42.13 in (1070 mm) |
| Lower Speed | 110.24 ft/min (33.6 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Lift Speed | 120.08 ft/min (36.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 104.22 |
| Power | 41.6 hp (31 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 122.1 cu in (2 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 7209.2 lb (3270 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.7 mph (18.7 km/h) |
