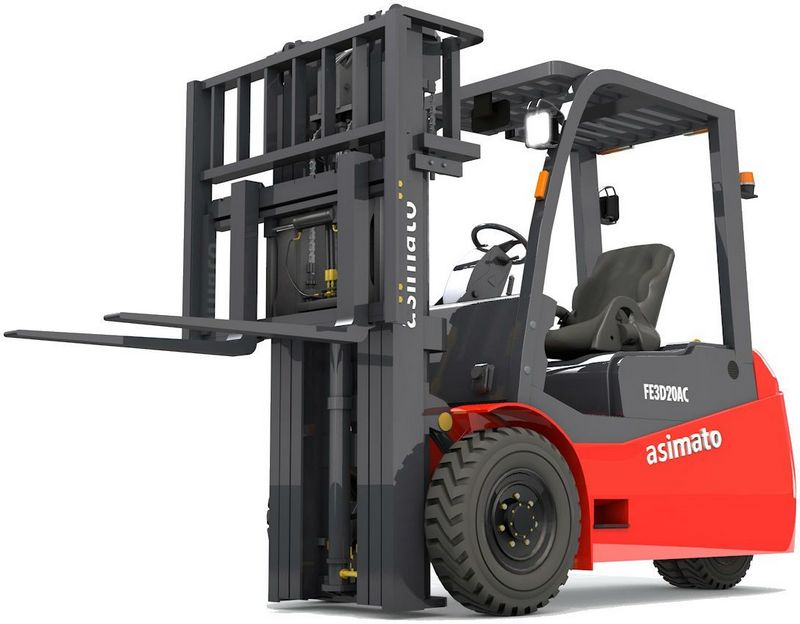

Noblelift FE3D20AC
Contents:
Dimensions
| Length To Fork Face | 6.8 ft in (2070 mm) |
| Overall Width | 3.61 ft in (1100 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 4.79 ft in (1458 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 7.03 ft in (2140 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 5.52 ft in (1680 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Max Fork Spread | 38.59 in (980 mm) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Lift Speed | 89.24 ft/min (27.2 m/min) |
Engine
| Engine Make | 2365 |
| Power | 13.5 hp (10 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 8686.3 lb (3940 kg) |
| Tire Type | superelastic front 21x8-9 rear 16x6-9 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.4 mph (15 km/h) |
