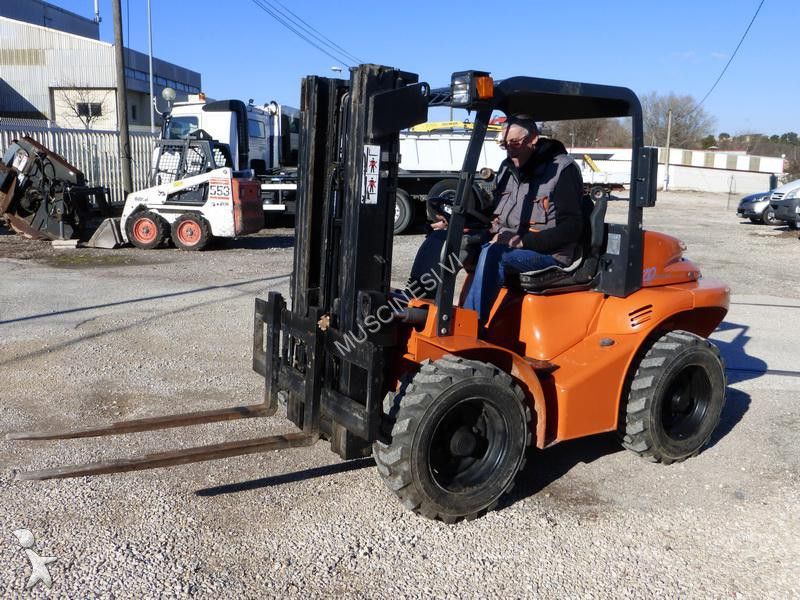

Mast Explorer H20DL
Browse All Mast Explorer or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.6 ft in (2620 mm) |
| Overall Width | 4.53 ft in (1380 mm) |
| Wheelbase | 4.86 ft in (1480 mm) |
| Height To Top Of Overhead Guard | 6.57 ft in (2000 mm) |
| Max Fork Height | 8.86 ft in (2700 mm) |
| Turning Radius | 11.82 ft in (3600 mm) |
Mast
| Number Of Mast Sections | 2 |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 404C.15 |
| Power | 36 hp (26.9 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 7275.3 lb (3300 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
