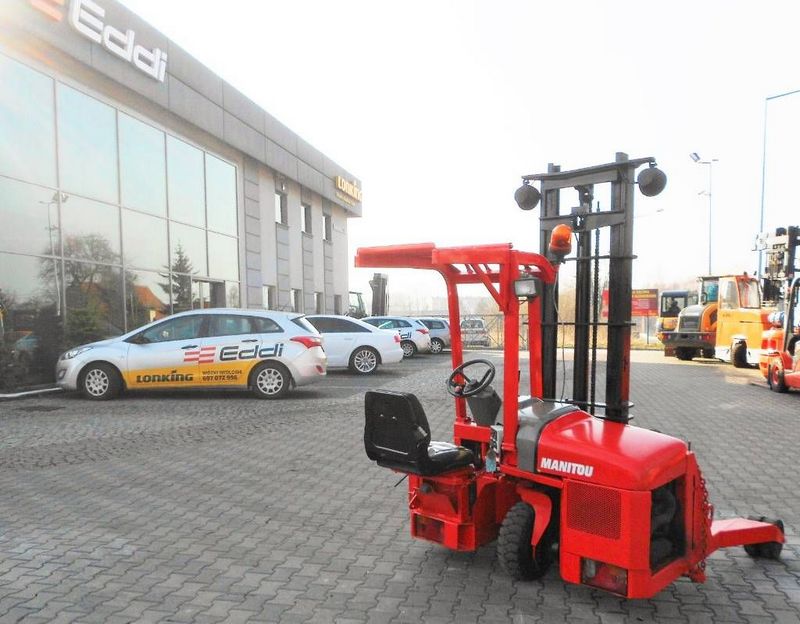

Manitou TMD 12
Contents:
Dimensions
| Length To Fork Face | 4.72 ft in (1438 mm) |
| Overall Width | 5.22 ft in (1589 mm) |
| Overall Height - Mast Lowered | 4.72 ft in (1438 mm) |
| Wheelbase | 4.14 ft in (1260 mm) |
| Max Fork Height | 7.7 ft in (2346 mm) |
| Turning Radius | 8.06 ft in (2456 mm) |
Mast
| Max Fork Spread | 30.08 in (764 mm) |
| Load Capacity | 2645.55 lb (1200 kg) |
Engine
| Engine Make | 2334 |
| Engine Model | Z482-E |
Operational
| Operating Weight | 1818.9 lb (825 kg) |
| Tire Type | 3.00 - 4 ht |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 10.3 mph (16.6 km/h) |
