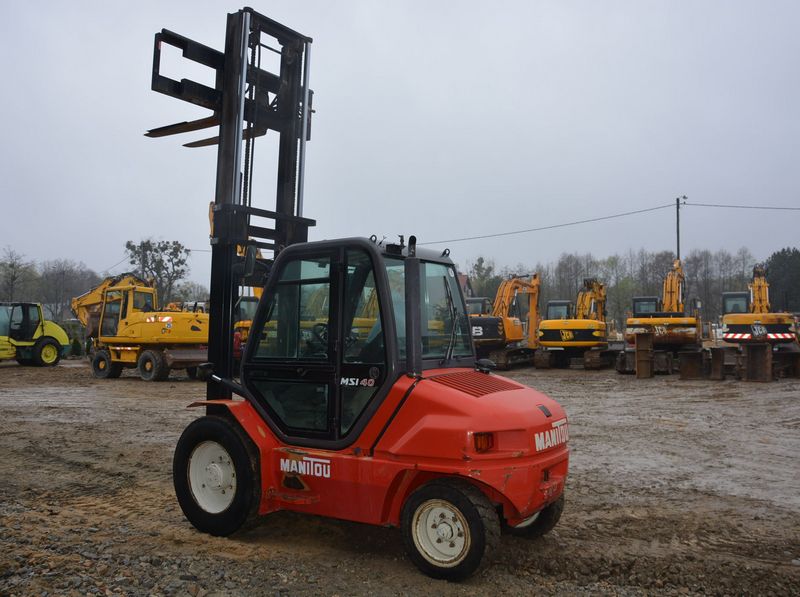

Manitou MSI 40
Contents:
Dimensions
| Overall Width | 4.91 ft in (1493.52 mm) |
| Wheelbase | 5.12 ft in (1557.53 mm) |
| Ground Clearance | 0.1 in (2.54 mm) |
| Fork Carriage Width | 49.61 in (1260 mm) |
| Height | 82.88 in (2105 mm) |
| Overall Length | 13.3 ft in (4053.84 mm) |
| Turning Radius | 10.8 ft in (3291.84 mm) |
Mast
| Mast Tip Forward | 10 degrees |
| Mast Tip Rear | 12 degrees |
Engine
| Capacity | 0.9 gal (3.4 L) |
| Transmission Type | Hydrostatic |
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | 3B / Tier 4 Final |
| Power | 65.2 hp (48.6 kw) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9392 lb (4260.2 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.7 mph (14 km/h) |
| Drawbar Pull | 7981 lb (3620.2 kg) |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Tyre Dimensions Rear | 27.10 - 12 IC 30 14PR |
| Driving Position Noise Levels | 104 dB |
| System Pressure | 2465.7 psi (17000 kPa) |
Lift
| Max Lift Capacity | 5511.6 lb (2500 kg) |
| Max Lift Height | 10.1 ft in (3078.5 mm) |
