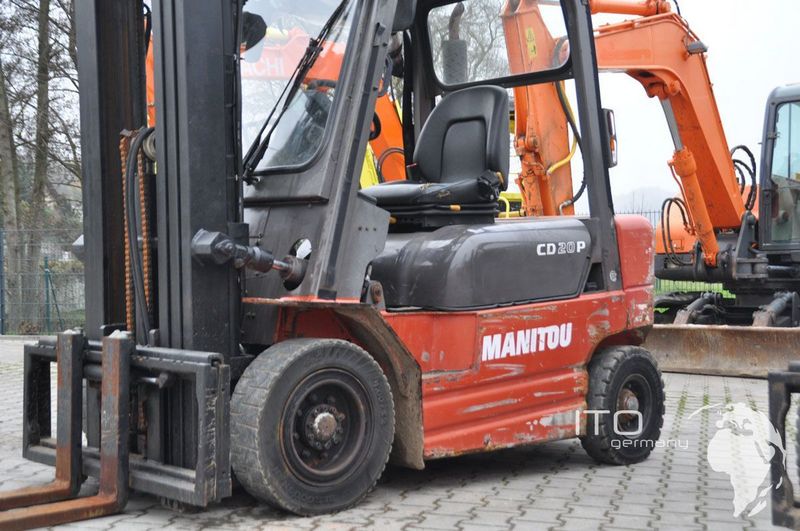

Manitou CD20P
Contents:
Dimensions
| Length To Fork Face | 8.06 ft in (2455 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.25 ft in (1600 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 6.96 ft in (2120 mm) |
| Max Fork Height | 11.03 ft in (3360 mm) |
| Turning Radius | 6.89 ft in (2100 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 45.28 in (1150 mm) |
| Lower Speed | _ - (28.8 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | _ - (43.8 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 4JG2 |
| Power | 60.3 hp (44.9 kw) |
| Displacement | 186.7 cu in (3.1 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 8388.6 lb (3805 kg) |
| Tire Type | front 7.00-12-12PR rear 6.00-9-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.1 mph (21 km/h) |
