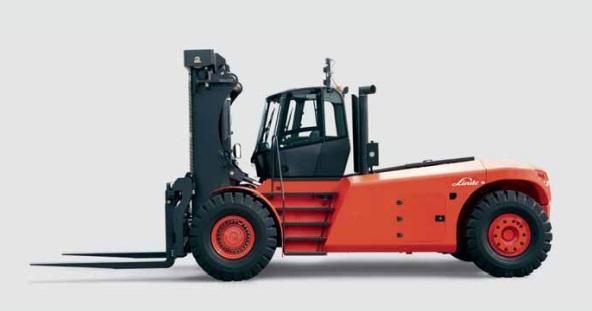

Linde H 280
Contents:
Dimensions
| Length To Fork Face | 22.1 ft in (6735 mm) |
| Overall Width | 11.19 ft in (3410 mm) |
| Overall Height - Mast Lowered | 13.16 ft in (4010 mm) |
| Wheelbase | 14.77 ft in (4500 mm) |
| Ground Clearance | 11.82 in (300 mm) |
| Height To Top Of Overhead Guard | 11.08 ft in (3375 mm) |
| Max Fork Height | 13.13 ft in (4000 mm) |
| Turning Radius | 20.51 ft in (6250 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 108.27 in (2750 mm) |
| Lower Speed | 78.75 ft/min (24 m/min) |
| Load Center | 47.25 in (1200 mm) |
| Load Capacity | 61729.43 lb (28000 kg) |
| Lift Speed | 63 ft/min (19.2 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2369 |
| Engine Model | DI 956A |
| Power | 221.3 hp (165 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 549.3 cu in (9 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 87303.1 lb (39600 kg) |
| Tire Type | pneumatic 16.00x25/28 PR |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.3 mph (24.5 km/h) |
