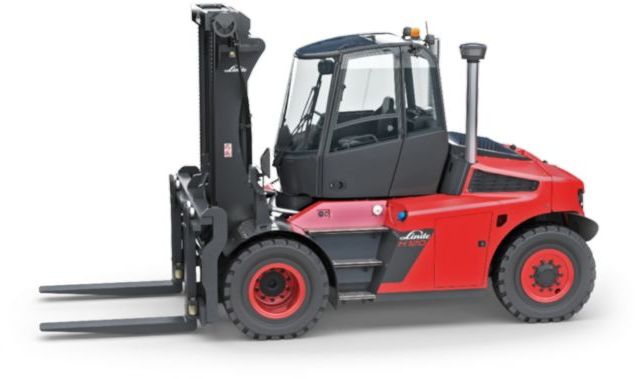

Linde H 160/1200
Contents:
Dimensions
| Length To Fork Face | 18.53 ft in (5645 mm) |
| Overall Width | 8.37 ft in (2550 mm) |
| Overall Height - Mast Lowered | 12.72 ft in (3875 mm) |
| Wheelbase | 12.05 ft in (3670 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height To Top Of Overhead Guard | 10.22 ft in (3115 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 16.9 ft in (5150 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 87.41 in (2220 mm) |
| Lower Speed | 104.34 ft/min (31.8 m/min) |
| Load Center | 47.25 in (1200 mm) |
| Load Capacity | 35273.96 lb (16000 kg) |
| Lift Speed | 78.75 ft/min (24 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2351 |
| Engine Model | 1106C-E60TA |
| Power | 173.7 hp (129.5 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 365 cu in (6 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 49817.9 lb (22597 kg) |
| Tire Type | pneumatic 12.00x20/20 PR |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.2 mph (26 km/h) |
