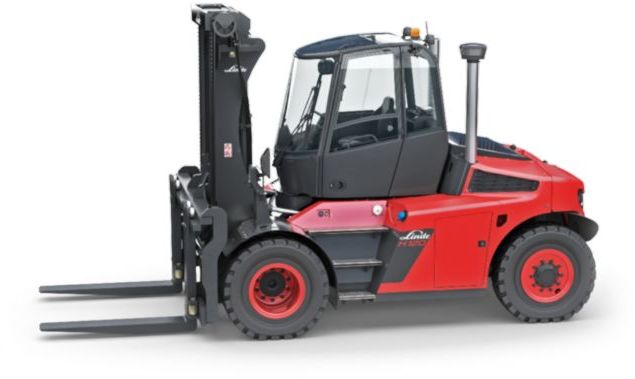

Linde H 140
Contents:
Dimensions
| Length To Fork Face | 15.75 ft in (4800 mm) |
| Overall Width | 8.24 ft in (2509 mm) |
| Overall Height - Mast Lowered | 12.05 ft in (3670 mm) |
| Wheelbase | 9.68 ft in (2950 mm) |
| Ground Clearance | 10.36 in (263 mm) |
| Height To Top Of Overhead Guard | 10.22 ft in (3115 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 13.75 ft in (4190 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 88.59 in (2250 mm) |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 30864.72 lb (14000 kg) |
| Lift Speed | 88.59 ft/min (27 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2351 |
| Engine Model | 1106C-E60TA |
| Power | 132.1 hp (98.5 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 365 cu in (6 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 40565.1 lb (18400 kg) |
| Tire Type | pneumatic 12.00X20/20 PR |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.4 mph (26.3 km/h) |
