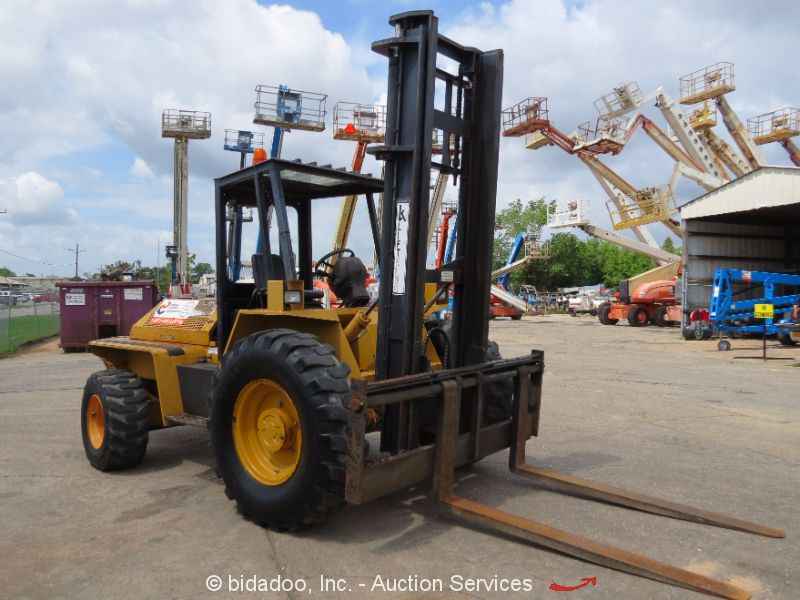

Lift King LK16M22
Contents:
Dimensions
| Length To Fork Face | 15.79 ft in (4810 mm) |
| Overall Width | 7.42 ft in (2260 mm) |
| Overall Height - Mast Lowered | 9.83 ft in (2996.19 mm) |
| Wheelbase | 9.36 ft in (2850 mm) |
| Ground Clearance | 11.82 in (300 mm) |
| Height To Top Of Overhead Guard | 8.17 ft in (2490 mm) |
| Max Fork Height | 14.01 ft in (4270 mm) |
| Turning Radius | 16.5 ft in (5029.2 mm) |
Mast
| Mast Tip Forward | 30 degrees |
| Mast Tip Rear | 12 degrees |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 16000 lb (7257.48 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004T-4 Turbo |
| Power | 120 hp (89.5 kw) |
Operational
| Operating Weight | 21480 lb (9743.2 kg) |
| Tire Type | drive 14.00x24 12ply steer 14x17.5 12ply |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
