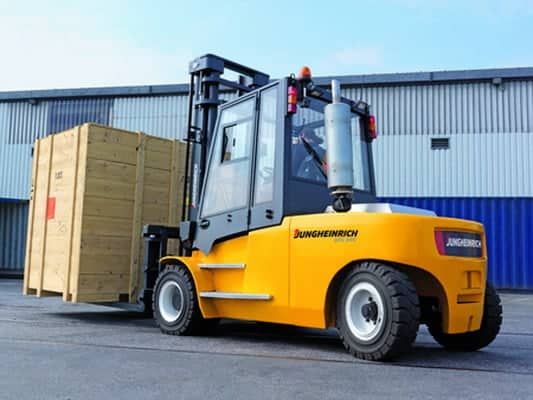

Jungheinrich TFG 660
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 11.41 ft in (3476 mm) |
| Overall Width | 5.39 ft in (1640 mm) |
| Overall Height - Mast Lowered | 8.21 ft in (2500 mm) |
| Wheelbase | 7.3 ft in (2225 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height To Top Of Overhead Guard | 8.24 ft in (2510 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 10.44 ft in (3180 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 9 degrees |
| Max Fork Spread | 59.06 in (1500 mm) |
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 13227.74 lb (6000 kg) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Engine Make | 2374 |
| Engine Model | V8 5.7l |
| Power | 120.7 hp (90 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 350.1 cu in (5.8 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 21605.4 lb (9800 kg) |
| Tire Type | superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.6 mph (25 km/h) |
