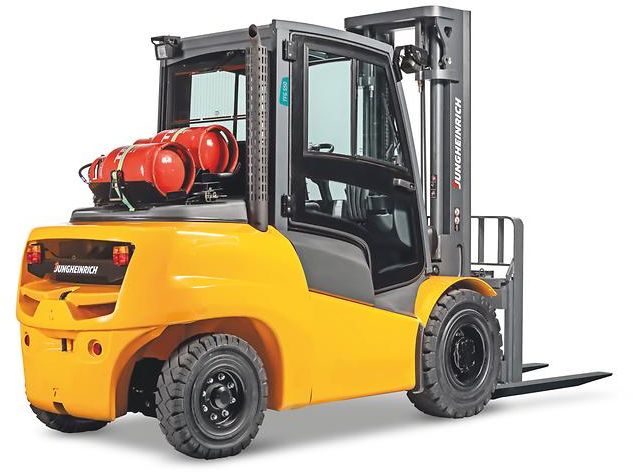

Jungheinrich TFG 540
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.83 ft in (2995 mm) |
| Overall Width | 4.6 ft in (1400 mm) |
| Overall Height - Mast Lowered | 8.34 ft in (2540 mm) |
| Wheelbase | 6.52 ft in (1985 mm) |
| Ground Clearance | 9.06 in (230 mm) |
| Height To Top Of Overhead Guard | 7.8 ft in (2375 mm) |
| Max Fork Height | 11.49 ft in (3500 mm) |
| Turning Radius | 8.72 ft in (2655 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 6 degrees |
| Load Capacity | 8818.5 lb (4000 kg) |
| Lower Speed | _ - (30.6 m/min) |
| Lift Speed | _ - (31.8 m/min) |
Engine
| Engine Model | petro engine |
Operational
| Operating Weight | 13842.9 lb (6279 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.1 mph (25.8 km/h) |
