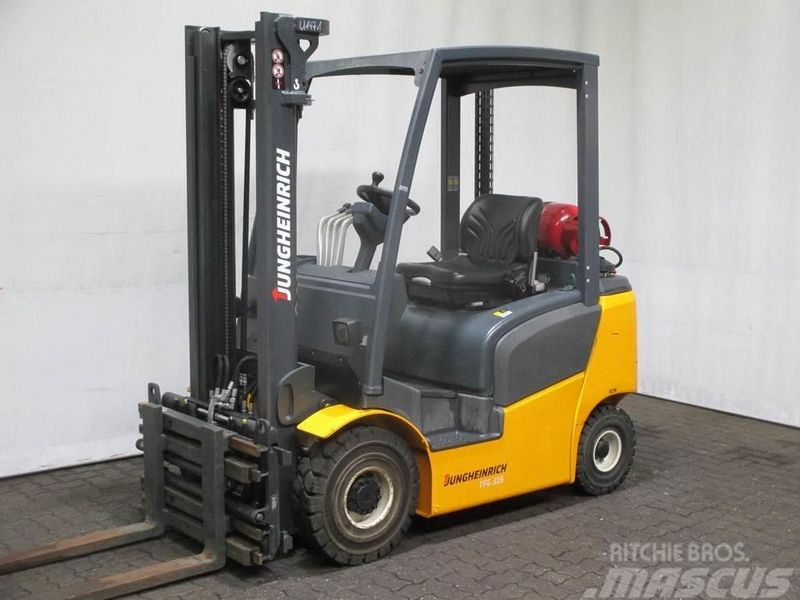

Jungheinrich TFG 316
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.4 ft in (2253 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.17 ft in (2185 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 5.32 in (135 mm) |
| Height To Top Of Overhead Guard | 6.99 ft in (2130 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 6.48 ft in (1975 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 6 degrees |
| Load Capacity | 3527.4 lb (1600 kg) |
| Lower Speed | _ - (33.6 m/min) |
| Lift Speed | _ - (39 m/min) |
Engine
| Engine Model | diesel engine |
Operational
| Operating Weight | 6613.9 lb (3000 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.2 mph (19.5 km/h) |
