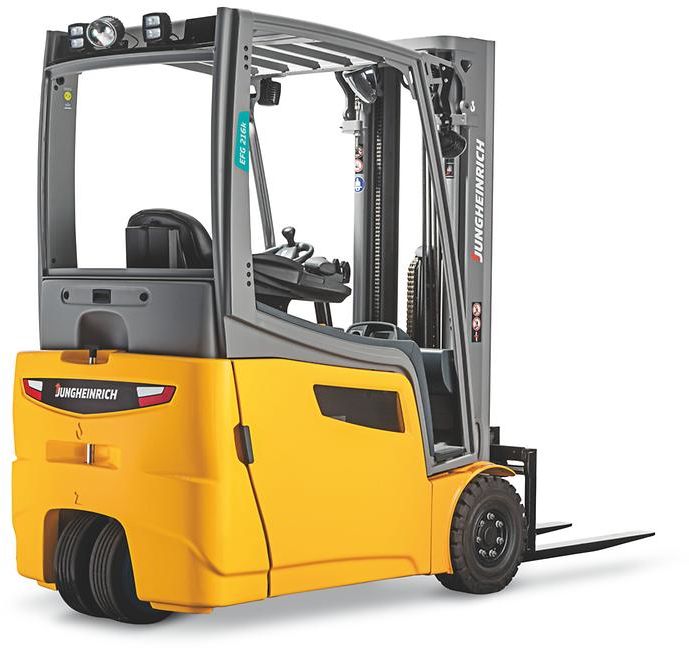

Jungheinrich EFG 216
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 6.59 ft in (2007 mm) |
| Overall Width | 3.48 ft in (1060 mm) |
| Overall Height - Mast Lowered | 6.57 ft in (2000 mm) |
| Wheelbase | 4.81 ft in (1465 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 6.44 ft in (1960 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 5.43 ft in (1655 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 7 degrees |
| Load Capacity | 3527.4 lb (1600 kg) |
| Lower Speed | _ - (33 m/min) |
| Lift Speed | _ - (36 m/min) |
Engine
| Engine Model | Electric engine |
Operational
| Operating Weight | 7021.8 lb (3185 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 10 mph (16 km/h) |
