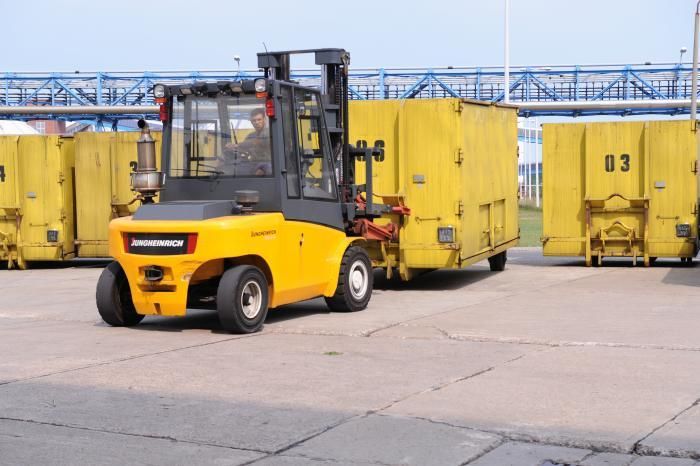

Jungheinrich DFG 670
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 12.09 ft in (3684 mm) |
| Overall Width | 5.98 ft in (1820 mm) |
| Overall Height - Mast Lowered | 8.4 ft in (2560 mm) |
| Wheelbase | 8.13 ft in (2475 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height To Top Of Overhead Guard | 8.24 ft in (2510 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 11.82 ft in (3600 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 9 degrees |
| Load Capacity | 15432.36 lb (7000 kg) |
| Lower Speed | _ - (36 m/min) |
| Lift Speed | _ - (29 m/min) |
Engine
| Engine Model | diesel engine |
Operational
| Operating Weight | 23347 lb (10590 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15.6 mph (25 km/h) |
