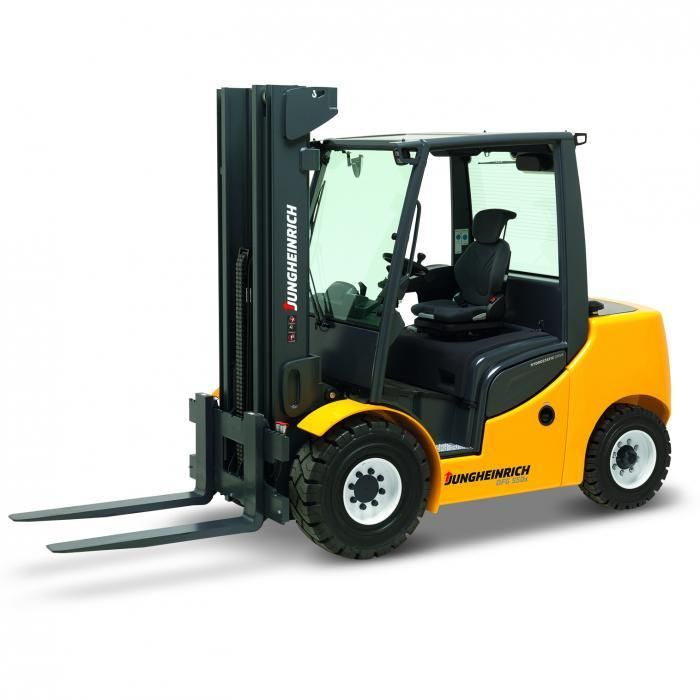

Jungheinrich DFG 545s
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.83 ft in (2995 mm) |
| Overall Width | 4.6 ft in (1400 mm) |
| Overall Height - Mast Lowered | 8.34 ft in (2540 mm) |
| Wheelbase | 6.52 ft in (1985 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height To Top Of Overhead Guard | 7.8 ft in (2375 mm) |
| Max Fork Height | 11.49 ft in (3500 mm) |
| Turning Radius | 8.72 ft in (2655 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 6 degrees |
| Max Fork Spread | 49.61 in (1260 mm) |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Lift Speed | 104.34 ft/min (31.8 m/min) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44 |
| Power | 82.5 hp (61.5 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 14702.7 lb (6669 kg) |
| Tire Type | superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14 mph (22.5 km/h) |
