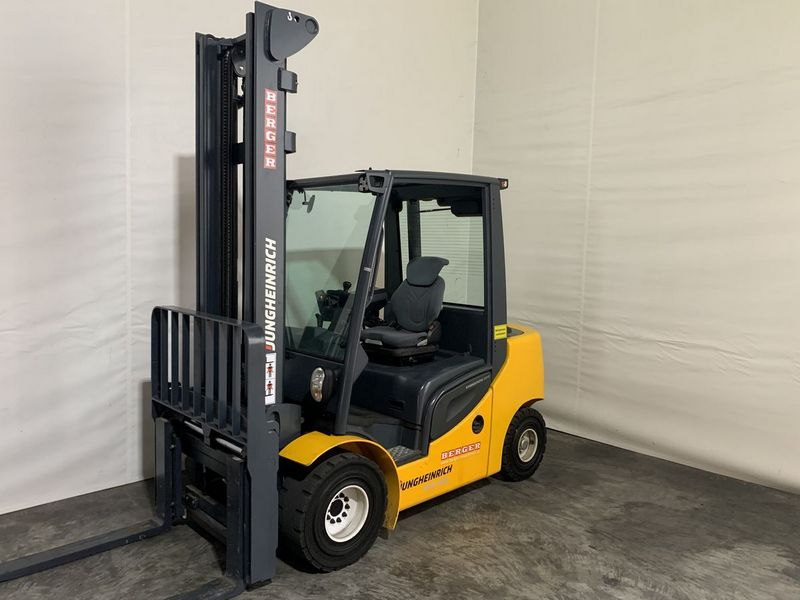

Jungheinrich DFG 430s
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.67 ft in (2640 mm) |
| Overall Width | 4.34 ft in (1321 mm) |
| Overall Height - Mast Lowered | 7.6 ft in (2315 mm) |
| Wheelbase | 5.53 ft in (1685 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2230 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.75 ft in (2360 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Max Fork Spread | 44.1 in (1120 mm) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 108.27 ft/min (33 m/min) |
Engine
| Engine Make | 2351 |
| Engine Model | 704.26 |
| Power | 53.7 hp (40 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 159.1 cu in (2.7 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 10317.7 lb (4680 kg) |
| Tire Type | superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.7 mph (20.3 km/h) |
