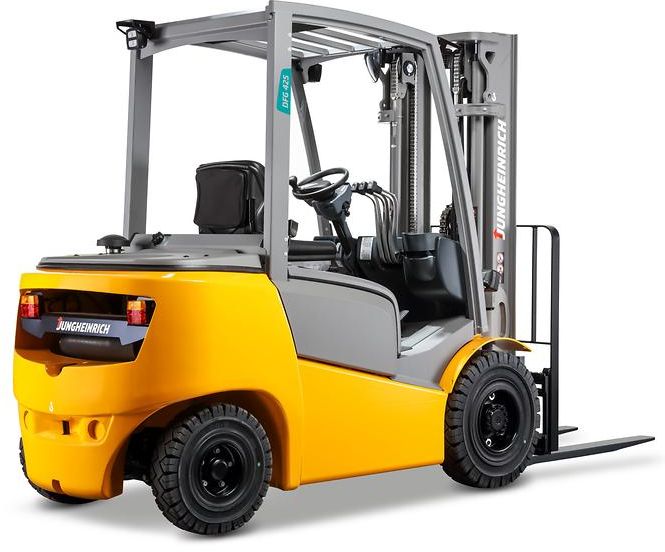

Jungheinrich DFG 425
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.34 ft in (2540 mm) |
| Overall Width | 3.86 ft in (1174 mm) |
| Overall Height - Mast Lowered | 7.49 ft in (2280 mm) |
| Wheelbase | 5.53 ft in (1685 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.29 ft in (2220 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.52 ft in (2290 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Load Capacity | 5511.56 lb (2500 kg) |
| Lower Speed | _ - (33 m/min) |
| Lift Speed | _ - (36 m/min) |
Engine
| Engine Model | diesel engine |
Operational
| Operating Weight | 9457.9 lb (4290 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
