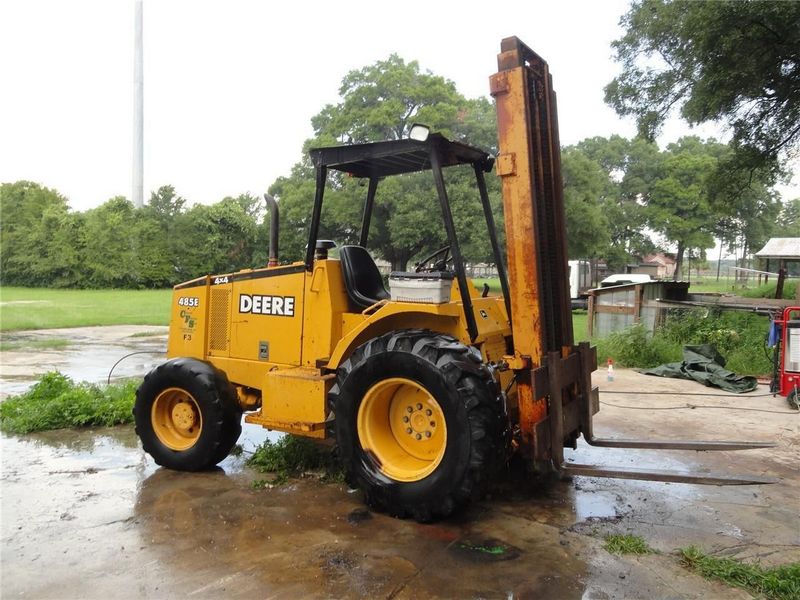

John Deere 485E
Browse All John Deere or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 12.5 ft in (3810 mm) |
| Overall Width | 7.17 ft in (2185 mm) |
| Overall Height - Mast Lowered | 10.01 ft in (3050 mm) |
| Wheelbase | 6.94 ft in (2115 mm) |
| Ground Clearance | 15 in (381 mm) |
| Height To Top Of Overhead Guard | 8.47 ft in (2580 mm) |
| Max Fork Height | 21.33 ft in (6500 mm) |
| Turning Radius | 10.96 ft in (3340 mm) |
Mast
| Mast Tip Forward | 30 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 5000 lb (2267.97 kg) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 94 ft/min (28.66 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045D |
| Power | 73 hp (54.5 kw) |
| Torque | 220 lb ft (298.3 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 276 cu in (4.6 L) |
Operational
| Operating Weight | 13210 lb (5992 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 24.2 mph (39 km/h) |
