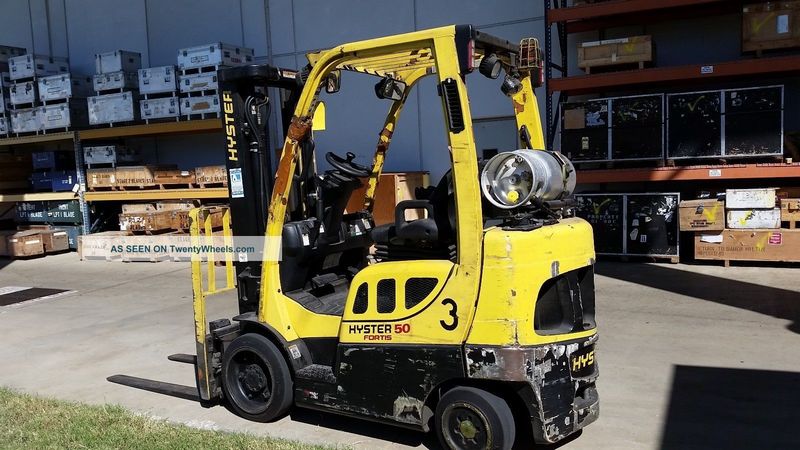

Hyster S50FT (Fortis Advance)
Contents:
Dimensions
| Length To Fork Face | 7.49 ft in (2280 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2135 mm) |
| Wheelbase | 4.7 ft in (1430 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Max Fork Height | 10.81 ft in (3292 mm) |
| Right Angle Stack | 7.81 ft in (2378 mm) |
| Turning Radius | 6.57 ft in (2000 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lift Speed | 110 ft/min (33.53 m/min) |
| Load Center | 610 in (15494 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lower Speed | 88 ft/min (26.83 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | 2.2L |
| Power | 51 hp (38.1 kw) |
| Torque | 94 lb ft (127.5 Nm) |
| Power Measured @ | 2600 rpm |
| Displacement | 134.3 cu in (2.2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LP/Gas |
Operational
| Operating Weight | 8620.1 lb (3910 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.4 mph (16.6 km/h) |
