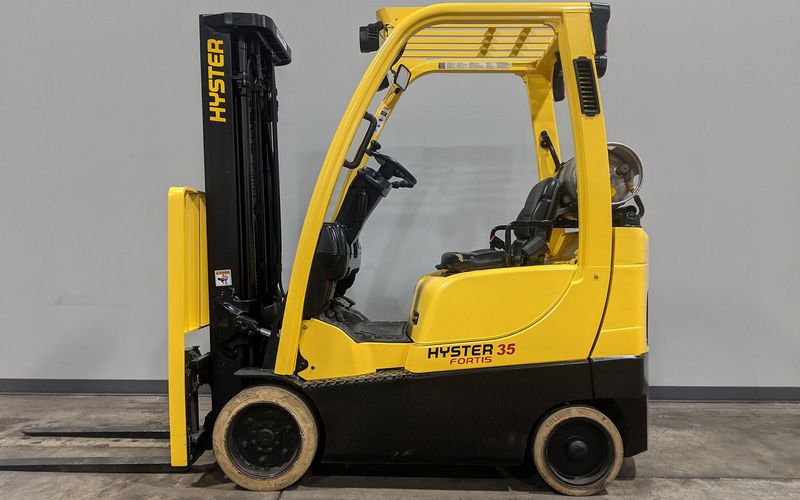

Hyster S35FT
Contents:
Dimensions
| Length To Fork Face | 6.93 ft in (2112 mm) |
| Overall Width | 3.24 ft in (986 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 4.55 ft in (1385 mm) |
| Ground Clearance | 4.22 in (107 mm) |
| Height To Top Of Overhead Guard | 6.52 ft in (1985 mm) |
| Max Fork Height | 10.61 ft in (3232 mm) |
| Gradeability | 31 % |
| Right Angle Stack | 7.12 ft in (2168 mm) |
| Turning Radius | 5.95 ft in (1811 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 94 ft/min (28.66 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3500 lb (1587.58 kg) |
| Lift Speed | 114 ft/min (34.75 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 2.0L |
| Power | 44 hp (32.9 kw) |
| Torque | 100 lb ft (135.6 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 122.1 cu in (2 L) |
| Torque Measured @ | 1300 rpm |
| Fuel Type | LP/Gas |
Operational
| Operating Weight | 6591.9 lb (2990 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.7 mph (17.3 km/h) |
| Drawbar Pull | 3095 lb (1403.9 kg) |
| Fuel Capacity | 10.2 gal (38.7 L) |
| Front Tire Size | 18 X 7 X 12.125 |
| Rear Tire Size | 15 X 5 X 11.25 |
| Hydraulic System Relief Valve Pressure | 2250 psi (15513.2 kPa) |
| Hydraulic Tank | 8.3 gal (31.5 L) |
| Axle Load - Front | 2731 lb (1238.8 kg) |
| Axle Load - Rear | 3859 lb (1750.5 kg) |
