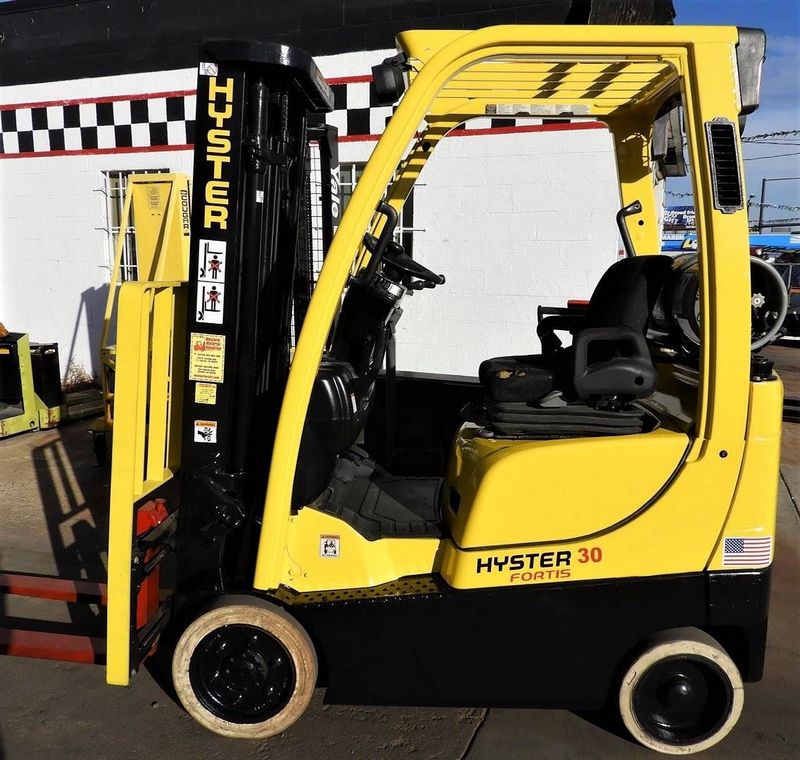

Hyster S30FT DuraMatch LP
Contents:
Dimensions
| Length To Fork Face | 6.81 ft in (2074 mm) |
| Overall Width | 3.09 ft in (940 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 4.3 ft in (1310 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Max Fork Height | 10.56 ft in (3218 mm) |
| Right Angle Stack | 7 ft in (2132 mm) |
| Turning Radius | 5.83 ft in (1775 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lift Speed | 114 ft/min (34.75 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lower Speed | 93 ft/min (28.35 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | FE |
| Power | 40 hp (29.9 kw) |
| Torque | 91 lb ft (123.4 Nm) |
| Displacement | 122.1 cu in (2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LP |
Operational
| Operating Weight | 6563.2 lb (2977 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.4 km/h) |
