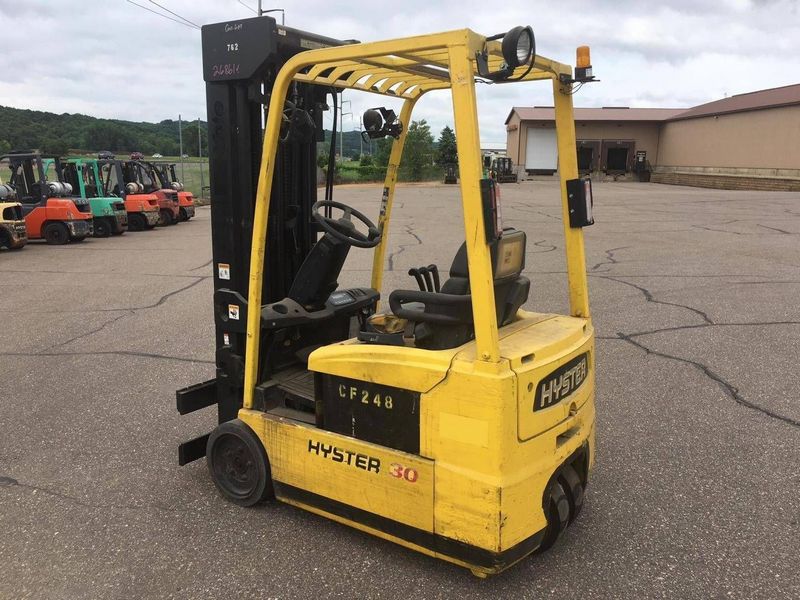

Hyster J30ZT (36V)
Contents:
Dimensions
| Length To Fork Face | 5.94 ft in (1808 mm) |
| Overall Width | 3.42 ft in (1040 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 4.24 ft in (1290 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2058 mm) |
| Max Fork Height | 10.61 ft in (3232 mm) |
| Turning Radius | 4.83 ft in (1470 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 7 degrees |
| Lift Speed | 95 ft/min (28.96 m/min) |
| Max Fork Spread | 37.72 in (958 mm) |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Load Center | 24 in (609.6 mm) |
| Number Of Mast Sections | 2 |
| Load Capacity | 2998.29 lb (1360 kg) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 6799.1 lb (3084 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 8.9 mph (14.2 km/h) |
