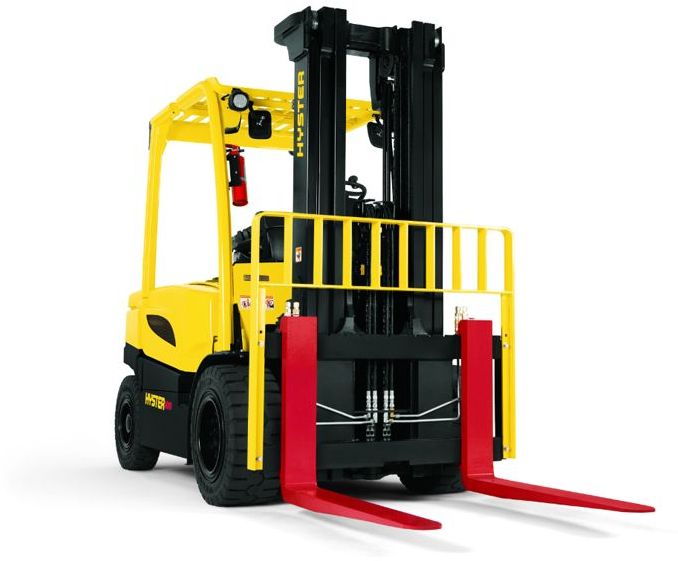

Hyster J110XN
Contents:
Dimensions
| Length To Fork Face | 10.26 ft in (3126 mm) |
| Overall Width | 4.77 ft in (1451 mm) |
| Overall Height - Mast Lowered | 7.62 ft in (2320 mm) |
| Wheelbase | 7.16 ft in (2180 mm) |
| Ground Clearance | 5.63 in (143 mm) |
| Height To Top Of Overhead Guard | 7.68 ft in (2338 mm) |
| Gradeability | 21.5 % |
| Right Angle Stack | 14.38 ft in (4381 mm) |
| Turning Radius | 8.45 ft in (2573 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 11001.07 lb (4990 kg) |
| Lift Speed | 91 ft/min (27.74 m/min) |
| Lower Speed | 71 ft/min (21.65 m/min) |
Engine
| Engine Make | Hyster |
| Engine Model | J110XN |
| Power | 19.7 hp (14.7 kw) |
Operational
| Auxiliary Hydraulic Flow | 15.9 gal/min (60 L/min) |
| Operating Weight | 13931.1 lb (6319 kg) |
| Tire Type | Pneumatic Shaped Solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.7 mph (18.7 km/h) |
| Drawbar Pull | 4020 lb (1823.5 kg) |
| Operating Voltage | 80 V |
| Front Tire Size | 355/50-15 |
| Rear Tire Size | 28 x 9-15 |
| Axle Load - Front | 9839.3 lb (4463 kg) |
| Axle Load - Rear | 9484.3 lb (4302 kg) |
Hydraulic
| Relief Valve Pressure | 2250 psi (15513.2 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Spring Applied |
