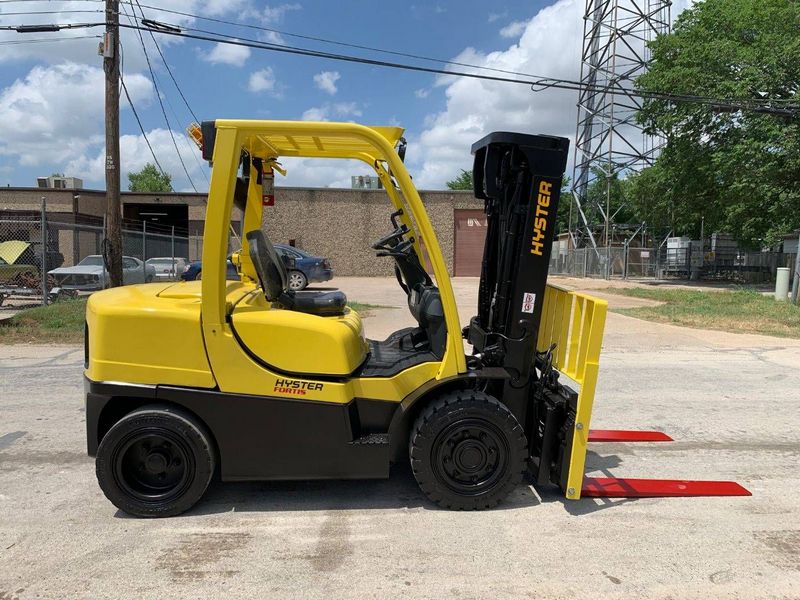

Hyster H80FT DM+2 Diesel
Contents:
Dimensions
| Length To Fork Face | 9.67 ft in (2945 mm) |
| Overall Width | 4.6 ft in (1402 mm) |
| Overall Height - Mast Lowered | 7.13 ft in (2171 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 7.64 in (194 mm) |
| Height To Top Of Overhead Guard | 7.41 ft in (2258 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Turning Radius | 8.44 ft in (2570 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 43.51 in (1105 mm) |
| Lower Speed | 92.5 ft/min (28.2 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 8016.01 lb (3636 kg) |
| Lift Speed | 129.9 ft/min (39.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Power | 78 hp (58.2 kw) |
| Torque | 225 lb ft (305.1 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 275 cu in (4.6 L) |
| Torque Measured @ | 1300 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 13576.1 lb (6158 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13 mph (21 km/h) |
