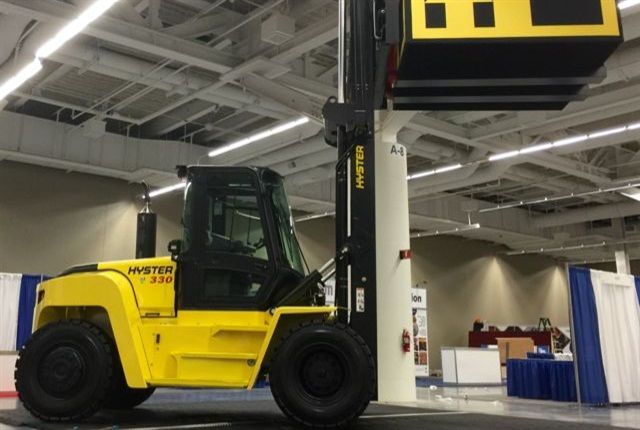

Hyster H330HD2S
Contents:
Dimensions
| Length To Fork Face | 16.4 ft in (4998 mm) |
| Overall Width | 8.34 ft in (2541 mm) |
| Overall Height - Mast Lowered | 11.71 ft in (3568 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Ground Clearance | 9.65 in (245 mm) |
| Height To Top Of Overhead Guard | 10.02 ft in (3053 mm) |
| Front Tread Range | 72.52 in (1842 mm) |
| Gradeability | 36 % |
| Rear Tread Range | 78.75 in (2000 mm) |
| Turning Radius | 15.04 ft in (4584 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 12 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 33000 lb (14968.55 kg) |
| Lift Speed | 71 ft/min (21.65 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
Engine
| Emission Tier Level | TIER 3 |
| Battery | 102 Ah |
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB 6.7 |
| Power | 155 hp (115.6 kw) |
| Torque | 440 lb ft (596.6 Nm) |
| Power Measured @ | 2300 rpm |
| Displacement | 408.3 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Fuel Type | Diesel |
| Alternator | 120 amps |
Operational
| Operating Weight | 41127 lb (18654.9 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 17 mph (27.4 km/h) |
| Oil System Fluid Capacity | 26.4 gal (100 L) |
| Drawbar Pull | 20700 lb (9389.4 kg) |
| Operating Voltage | 24 V |
| Fuel Capacity | 42 gal (159 L) |
| Front Tire Size | 12.00-20 20PR |
| Hydraulic System Fluid Capacity | 37 gal (140.1 L) |
| Rear Tire Size | 12.00-20 20PR |
| Axle Load - Front | 68484 lb (31063.9 kg) |
| Axle Load - Rear | 5644 lb (2560.1 kg) |
Transmission
| Number Of Forward / Reverse Speeds | 3 / 3 |
| Drive System | Powershift Transmission |
| Transmission Type | ZF / WG161 |
Brakes
| Service Brake | Oil immersed (wet) disc |
| Parking Brake | Spring applied, dry disc on drive axle |
