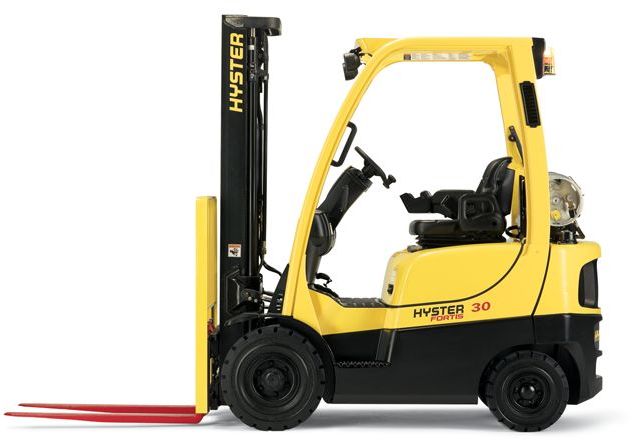

Hyster H30FT Gas
Contents:
Dimensions
| Length To Fork Face | 7.34 ft in (2236 mm) |
| Overall Width | 3.51 ft in (1068 mm) |
| Overall Height - Mast Lowered | 6.98 ft in (2125 mm) |
| Wheelbase | 4.55 ft in (1385 mm) |
| Ground Clearance | 5.2 in (132 mm) |
| Height To Top Of Overhead Guard | 7.06 ft in (2149 mm) |
| Max Fork Height | 10.61 ft in (3232 mm) |
| Turning Radius | 6.42 ft in (1955 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Max Fork Spread | 37.6 in (955 mm) |
| Lower Speed | 100 ft/min (30.48 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 2998.29 lb (1360 kg) |
| Lift Speed | 112 ft/min (34.14 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | 2.0L |
| Power | 46 hp (34.4 kw) |
| Torque | 104 lb ft (141.1 Nm) |
| Displacement | 122 cu in (2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LP |
Operational
| Operating Weight | 9744.5 lb (4420 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.8 mph (20.5 km/h) |
