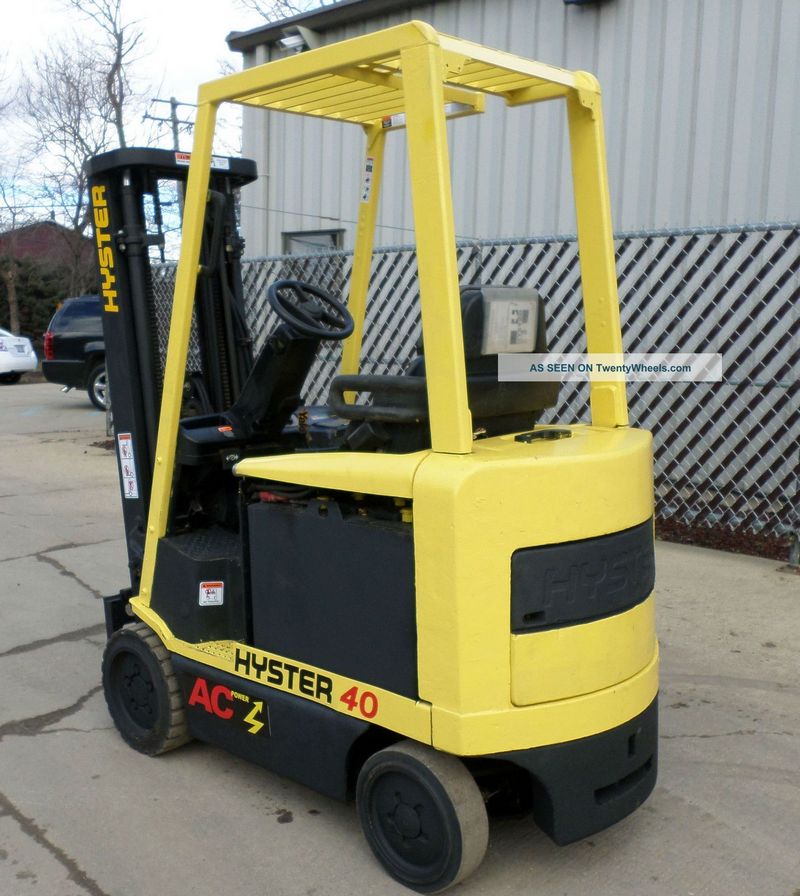

Hyster E40ZS (36V)
Contents:
Dimensions
| Length To Fork Face | 6.44 ft in (1960 mm) |
| Overall Width | 3.26 ft in (991 mm) |
| Overall Height - Mast Lowered | 6.84 ft in (2083 mm) |
| Wheelbase | 4.01 ft in (1220 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Height To Top Of Overhead Guard | 7.3 ft in (2224 mm) |
| Max Fork Height | 10.61 ft in (3232 mm) |
| Right Angle Stack | 9.23 ft in (2813 mm) |
| Turning Radius | 5.55 ft in (1691 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3990.37 lb (1810 kg) |
| Lift Speed | 107 ft/min (32.62 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 7590.6 lb (3443 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (17.9 km/h) |
