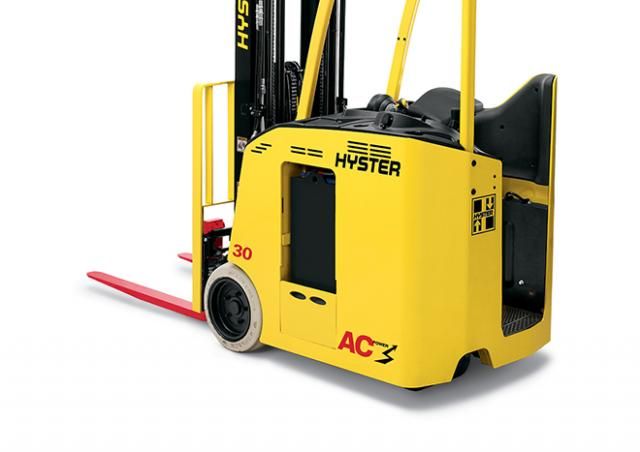

Hyster E30HSD3
Contents:
Dimensions
| Length To Fork Face | 5.2 ft in (1583 mm) |
| Overall Width | 3.51 ft in (1067 mm) |
| Overall Height - Mast Lowered | 6.99 ft in (2130 mm) |
| Wheelbase | 3.29 ft in (1001 mm) |
| Ground Clearance | 4.02 in (102 mm) |
| Height To Top Of Overhead Guard | 7.33 ft in (2234 mm) |
| Front Tread Range | 35 in (889 mm) |
| Gradeability | 15 % |
| Rear Tread Range | 24.49 in (622 mm) |
| Right Angle Stack | 5.67 ft in (1728 mm) |
| Turning Radius | 4.23 ft in (1289 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 3000.5 lb (1361 kg) |
| Max Fork Spread | 131.19 in (3332 mm) |
| Lower Speed | 63 ft/min (19.21 m/min) |
| Lift Speed | 87 ft/min (26.52 m/min) |
| Load Center | 23.98 in (609 mm) |
Engine
| Engine Make | Hyster |
| Engine Model | E30HSD3 |
Operational
| Operating Weight | 6353.8 lb (2882 kg) |
| Tire Type | Rubber |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.3 mph (11.6 km/h) |
| Drawbar Pull | 2602 lb (1180.3 kg) |
| Front Tire Size | 18 x 7 - 12.1 |
| Rear Tire Size | 10 x 5 - 6.5 |
| Axle Load - Front | 3991 lb (1810.3 kg) |
| Axle Load - Rear | 4462 lb (2024 kg) |
