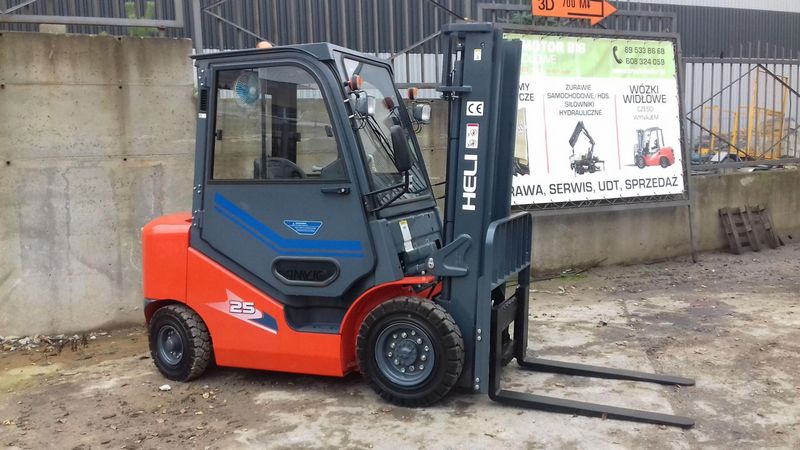

HeLi CPQ25
Contents:
Dimensions
| Length To Fork Face | 8.37 ft in (2550 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 6.91 ft in (2105 mm) |
| Wheelbase | 5.25 ft in (1600 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 6.6 ft in (2010 mm) |
| Turning Radius | 7.35 ft in (2240 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 5511.56 lb (2500 kg) |
| Max Fork Spread | 40.16 in (1020 mm) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 108.27 ft/min (33 m/min) |
Engine
| Engine Make | 2311 |
| Engine Model | H20 |
| Power | 43.4 hp (32.3 kw) |
| Torque | 104.8 lb ft (142 Nm) |
| Power Measured @ | 2300 rpm |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gasoline |
Operational
| Operating Weight | 8113.1 lb (3680 kg) |
| Tire Type | front 7.00-12-12PR rear 6.00-9-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17 km/h) |
