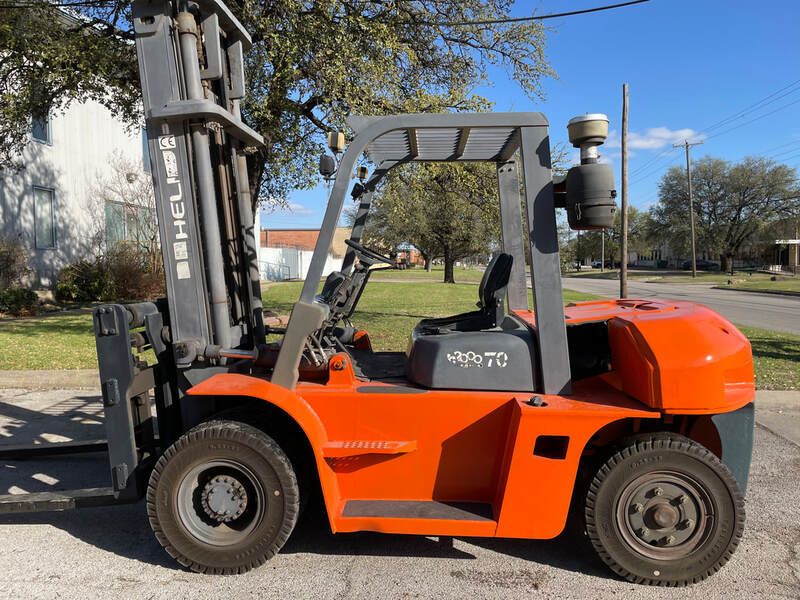

HeLi CPCD70W2
Contents:
Dimensions
| Overall Height - Mast Lowered | 8.62 ft in (2625 mm) |
| Wheelbase | 7.39 ft in (2250 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height To Top Of Overhead Guard | 8.04 ft in (2450 mm) |
| Max Fork Height | 14.51 ft in (4420 mm) |
| Turning Radius | 11.06 ft in (3370 mm) |
Mast
| Lower Speed | 59.06 ft/min (18 m/min) |
| Load Capacity | 15432.36 lb (7000 kg) |
| Lift Speed | 90.56 ft/min (27.6 m/min) |
| Load Center | 23.63 in (600 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | 6BG1 |
| Power | 110 hp (82 kw) |
| Torque | 306.1 lb ft (415 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 396.3 cu in (6.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 20613.3 lb (9350 kg) |
| Tire Type | pneumatic 8.25-15-14PR |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 18.7 mph (30 km/h) |
