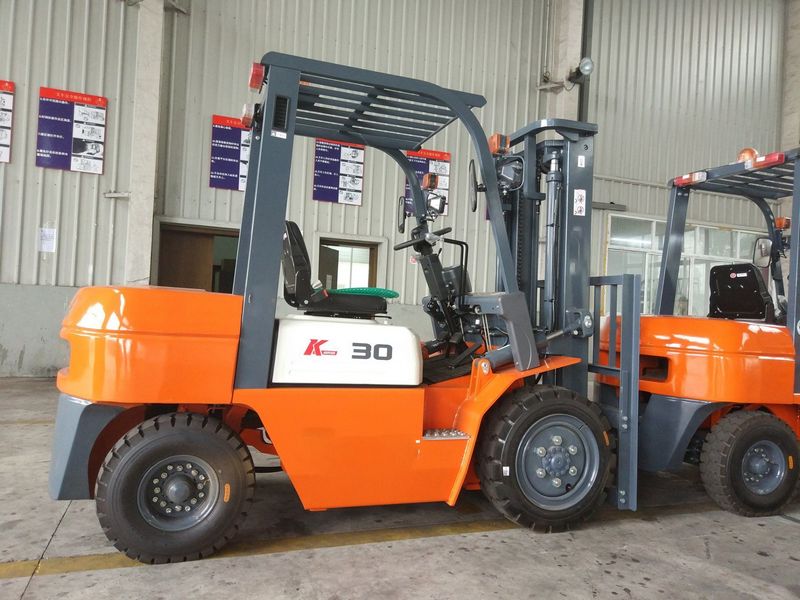

HeLi CPC30
Contents:
Dimensions
| Length To Fork Face | 8.78 ft in (2675 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 6.91 ft in (2105 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.52 in (140 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 6.93 ft in (2110 mm) |
| Turning Radius | 7.88 ft in (2400 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 6613.87 lb (3000 kg) |
| Max Fork Spread | 40.16 in (1020 mm) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | C240PKJ |
| Power | 60.3 hp (44.9 kw) |
| Torque | 137.5 lb ft (186.3 Nm) |
| Power Measured @ | 2450 rpm |
| Torque Measured @ | 1800 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 9435.8 lb (4280 kg) |
| Tire Type | front 28x9-15-12PR rear 6.50-10-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
