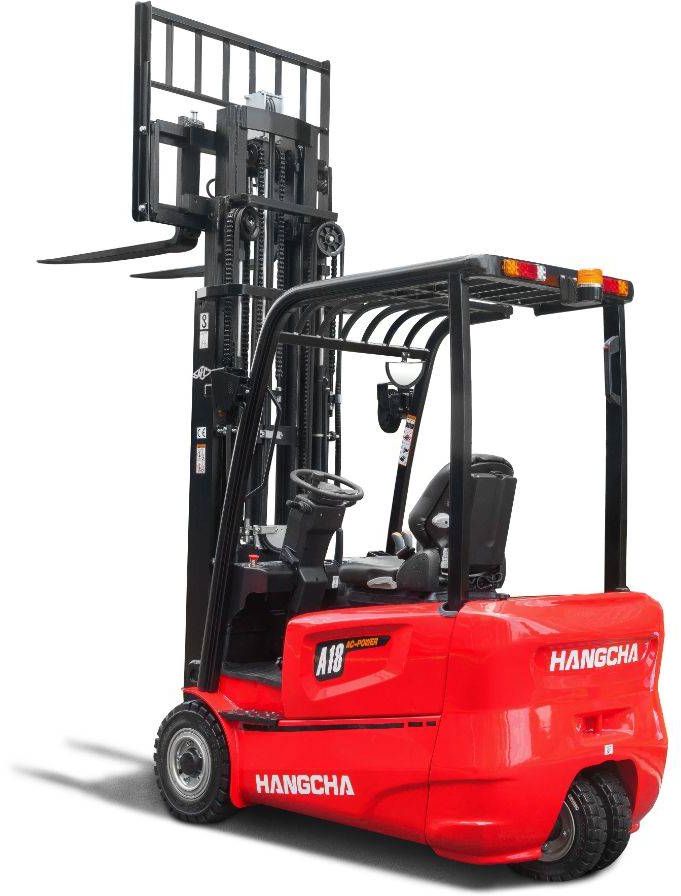

GP CPDS15
Contents:
Dimensions
| Length To Fork Face | 6.11 ft in (1860 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.5 ft in (1980 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.53 ft in (1990 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 4.93 ft in (1500 mm) |
Mast
| Lower Speed | 88.59 ft/min (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3306.94 lb (1500 kg) |
| Lift Speed | 92.52 ft/min (28.2 m/min) |
Engine
| Power | 16.1 hp (12 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 6834.4 lb (3100 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 8.7 mph (14 km/h) |
