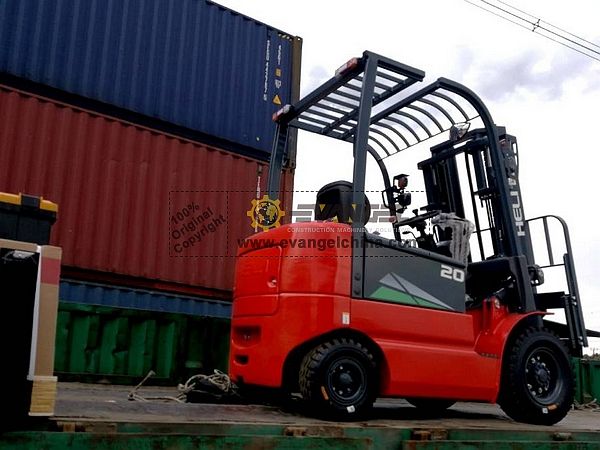

GP CPD20
Contents:
Dimensions
| Length To Fork Face | 7.63 ft in (2325 mm) |
| Overall Width | 3.84 ft in (1170 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Ground Clearance | 4.14 in (105 mm) |
| Height To Top Of Overhead Guard | 7.12 ft in (2170 mm) |
| Max Fork Height | 13.23 ft in (4030 mm) |
Mast
| Load Capacity | 4409.25 lb (2000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lower Speed | 118.12 ft/min (36 m/min) |
| Lift Speed | 84.65 ft/min (25.8 m/min) |
Engine
| Power | 11.6 hp (8.6 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 8774.4 lb (3980 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.7 mph (14 km/h) |
