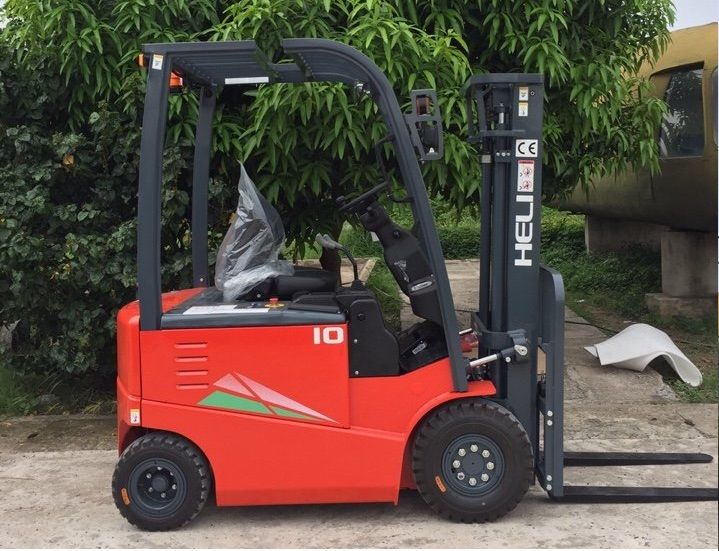

GP CPD10
Contents:
Dimensions
| Length To Fork Face | 6.52 ft in (1985 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.62 ft in (2015 mm) |
| Ground Clearance | 3.9 in (99 mm) |
| Height To Top Of Overhead Guard | 6.89 ft in (2100 mm) |
| Max Fork Height | 13.05 ft in (3975 mm) |
| Turning Radius | 6.34 ft in (1930 mm) |
Mast
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 2204.63 lb (1000 kg) |
| Lift Speed | 63 ft/min (19.2 m/min) |
Engine
| Power | 10.1 hp (7.5 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 6040.7 lb (2740 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.4 mph (13.5 km/h) |
