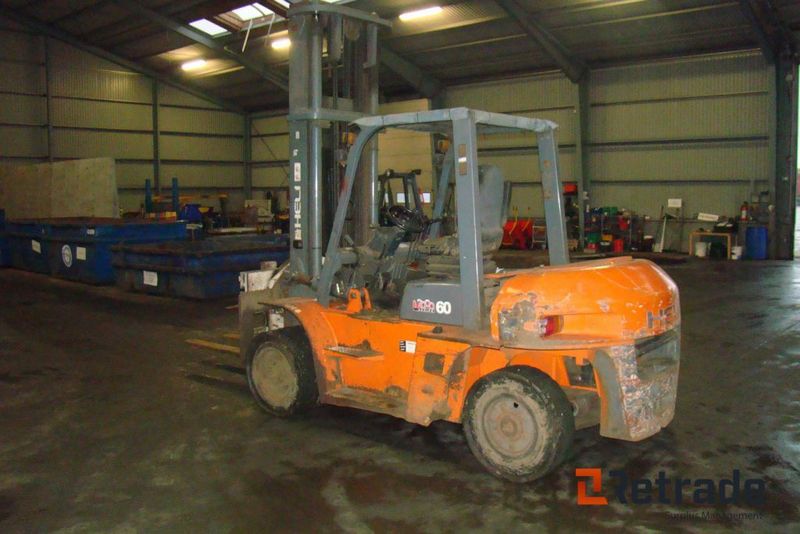

GP CPCD60
Contents:
Dimensions
| Overall Height - Mast Lowered | 8.21 ft in (2500 mm) |
| Ground Clearance | 6.7 in (170 mm) |
| Height To Top Of Overhead Guard | 8.04 ft in (2450 mm) |
| Max Fork Height | 14.51 ft in (4420 mm) |
| Turning Radius | 11.06 ft in (3370 mm) |
Mast
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 13227.74 lb (6000 kg) |
| Lift Speed | 88.59 ft/min (27 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 6BG1 |
| Power | 110.4 hp (82.3 kw) |
| Torque | 306.9 lb ft (416 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 396.1 cu in (6.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | DIESEL |
Operational
| Operating Weight | 19643.2 lb (8910 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 17.4 mph (28 km/h) |
