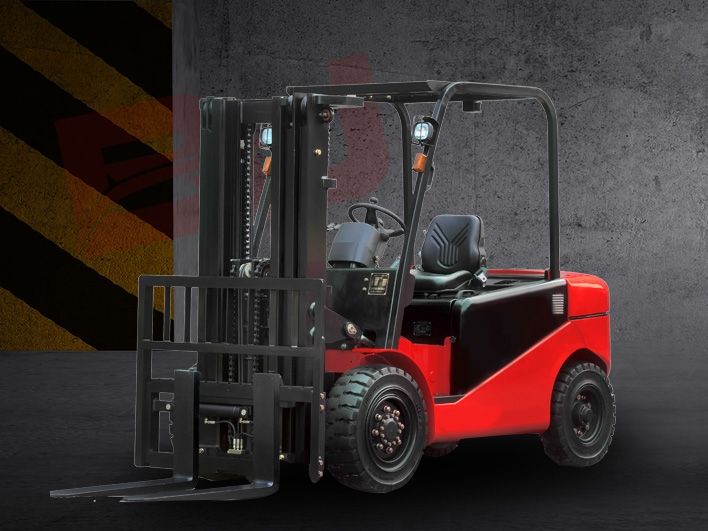

GP CPC(D)30
Contents:
Dimensions
| Length To Fork Face | 8.85 ft in (2695 mm) |
| Overall Width | 4.04 ft in (1230 mm) |
| Overall Height - Mast Lowered | 6.75 ft in (2055 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2085 mm) |
| Max Fork Height | 13.97 ft in (4256 mm) |
| Turning Radius | 7.94 ft in (2420 mm) |
Mast
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lift Speed | 102.37 ft/min (31.2 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | C240 |
| Power | 46.3 hp (34.5 kw) |
| Torque | 102.6 lb ft (139 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 144.7 cu in (2.4 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | DIESEL |
Operational
| Operating Weight | 9590.2 lb (4350 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
