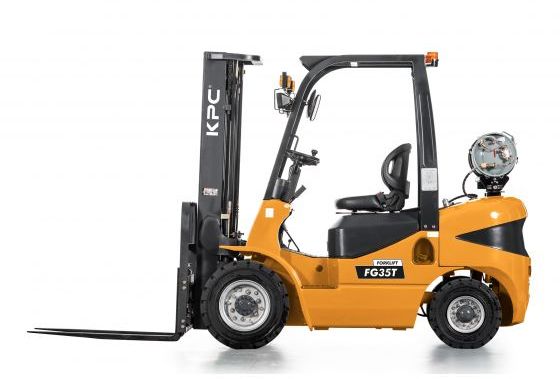

EP FG35T-F2
Contents:
Dimensions
| Length To Fork Face | 9.16 ft in (2790 mm) |
| Overall Width | 4.11 ft in (1250 mm) |
| Overall Height - Mast Lowered | 6.62 ft in (2017 mm) |
| Wheelbase | 5.78 ft in (1760 mm) |
| Ground Clearance | 5.52 in (140 mm) |
| Height To Top Of Overhead Guard | 7.16 ft in (2180 mm) |
| Max Fork Height | 13.82 ft in (4210 mm) |
| Right Angle Stack | 9.85 ft in (3000 mm) |
| Turning Radius | 8.24 ft in (2510 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 7716.18 lb (3500 kg) |
| Lower Speed | 88.59 ft/min (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 78.75 ft/min (24 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | F2(2.2L) |
| Power | 49.9 hp (37.2 kw) |
| Torque | 104.8 lb ft (142 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 133.3 cu in (2.2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | gasoline |
Operational
| Operating Weight | 10251.5 lb (4650 kg) |
| Tire Type | front 28x9-15-12PR rear 6.50-10-10PR |
| Max Speed | 11.2 mph (18 km/h) |
