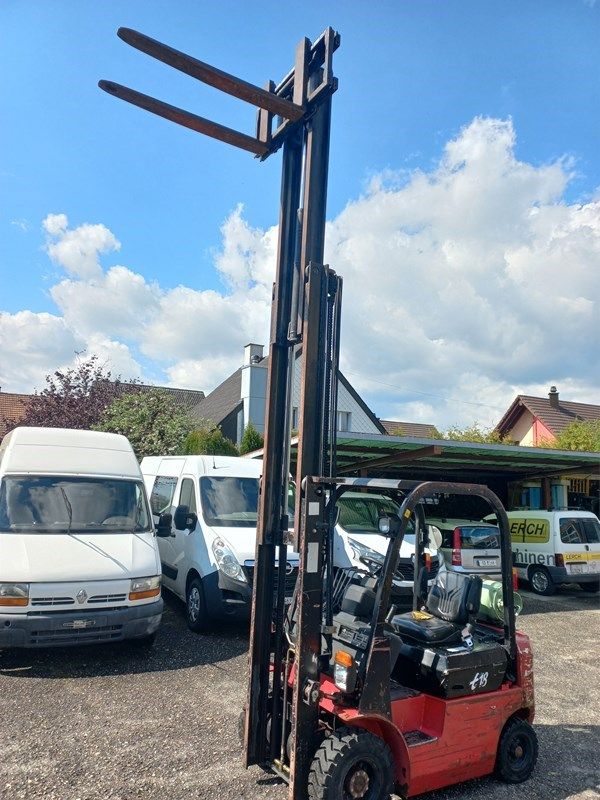

EP FG18T-F2
Contents:
Dimensions
| Length To Fork Face | 7.45 ft in (2270 mm) |
| Overall Width | 3.55 ft in (1080 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.7 ft in (1430 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Max Fork Height | 13 ft in (3960 mm) |
| Right Angle Stack | 8.01 ft in (2440 mm) |
| Turning Radius | 6.68 ft in (2035 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 3968.33 lb (1800 kg) |
| Lower Speed | _ - (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | _ - (27.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | F2(2.2L) |
| Power | 49.9 hp (37.2 kw) |
| Torque | 104.8 lb ft (142 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 133.3 cu in (2.2 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | gasoline |
Operational
| Operating Weight | 6400 lb (2900 kg) |
| Tire Type | front 6.50-10-10PR rear 5.00-8-10PR |
| Max Speed | 8.7 mph (14 km/h) |
