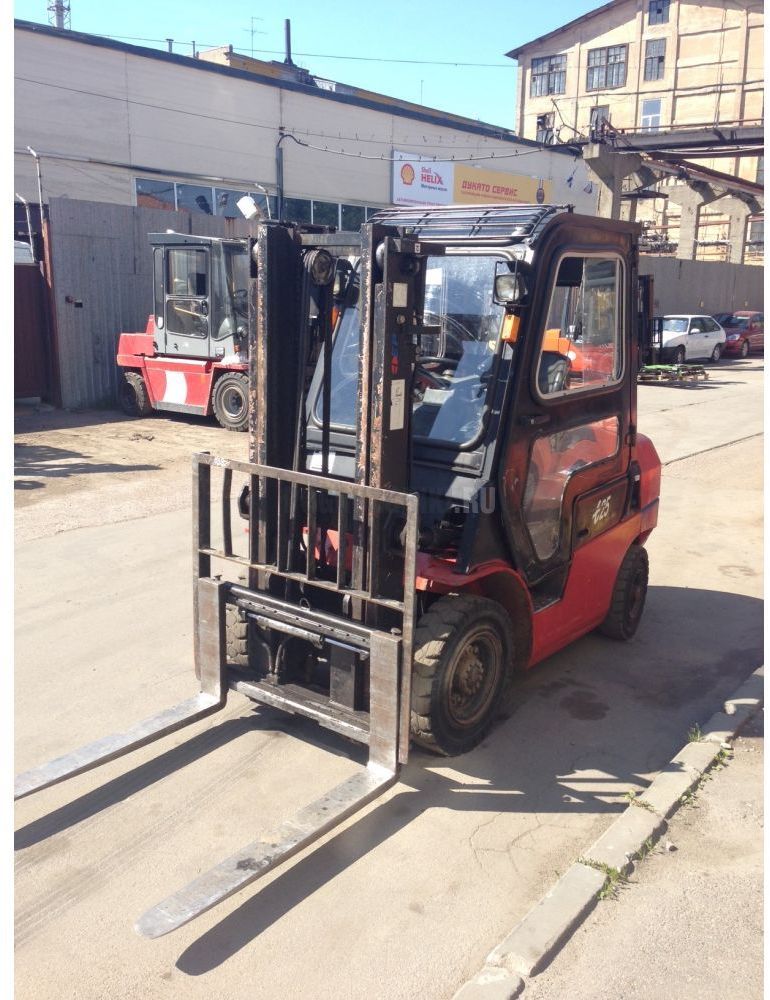

EP FD25T-NE92
Contents:
Dimensions
| Length To Fork Face | 8.54 ft in (2600 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 5.25 ft in (1600 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 6.99 ft in (2130 mm) |
| Max Fork Height | 13.78 ft in (4200 mm) |
| Right Angle Stack | 9.03 ft in (2750 mm) |
| Turning Radius | 7.35 ft in (2240 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 5511.56 lb (2500 kg) |
| Lower Speed | _ - (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | _ - (27 m/min) |
Engine
| Engine Make | 2348 |
| Engine Model | 4TNE82 |
| Power | 44.3 hp (33 kw) |
| Torque | 100.4 lb ft (136 Nm) |
| Displacement | 162.3 cu in (2.7 L) |
Operational
| Operating Weight | 8598.1 lb (3900 kg) |
| Tire Type | front 7.00-12-12PR rear 6.00-9-10PR |
| Max Speed | 12.5 mph (20 km/h) |
