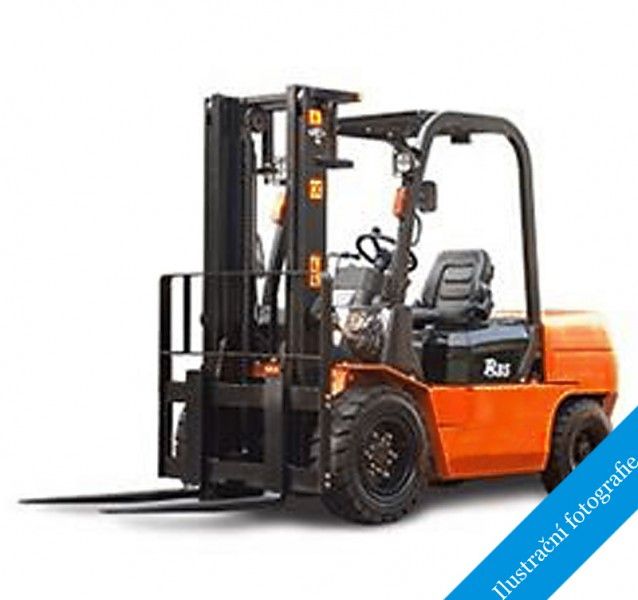

EP CPQD30N
Contents:
Dimensions
| Length To Fork Face | 9.03 ft in (2750 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 7.09 ft in (2160 mm) |
| Wheelbase | 5.78 ft in (1760 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.06 ft in (2150 mm) |
| Max Fork Height | 13.59 ft in (4140 mm) |
| Right Angle Stack | 9.37 ft in (2855 mm) |
| Turning Radius | 7.8 ft in (2375 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lower Speed | 90.56 ft/min (27.6 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 90.56 ft/min (27.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2311 |
| Engine Model | H25 |
| Power | 59.1 hp (44 kw) |
| Torque | 132.1 lb ft (179 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 150.9 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gasoline/LPG |
Operational
| Operating Weight | 9380.7 lb (4255 kg) |
| Tire Type | front 28*9-15-12PR rear 6.50-10-10PR |
| Max Speed | 13.4 mph (21.5 km/h) |
