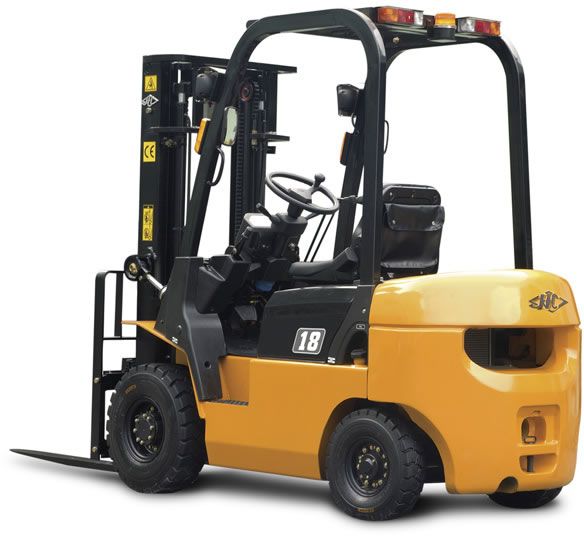

EP CPQD18N
Contents:
Dimensions
| Length To Fork Face | 7.55 ft in (2300 mm) |
| Overall Width | 3.55 ft in (1080 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 6.93 ft in (2110 mm) |
| Max Fork Height | 13 ft in (3960 mm) |
| Right Angle Stack | 7.91 ft in (2410 mm) |
| Turning Radius | 6.58 ft in (2005 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 3858.09 lb (1750 kg) |
| Lower Speed | 88.59 ft/min (27 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2311 |
| Engine Model | K21 |
| Power | 41.6 hp (31 kw) |
| Torque | 112.2 lb ft (152 Nm) |
| Power Measured @ | 2600 rpm |
| Displacement | 126.1 cu in (2.1 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Gasoline/LPG |
Operational
| Operating Weight | 6459.6 lb (2930 kg) |
| Tire Type | front 6.50-10-10PR rear 5.00-8-10PR |
| Max Speed | 9.1 mph (14.5 km/h) |
