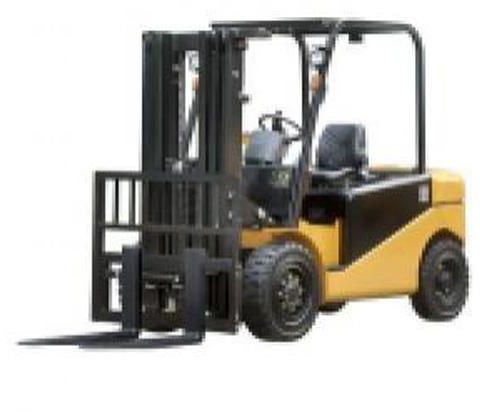

EP CPD50JD1
Contents:
Dimensions
| Length To Fork Face | 9.9 ft in (3015 mm) |
| Overall Width | 4.53 ft in (1380 mm) |
| Overall Height - Mast Lowered | 7.17 ft in (2185 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 8.63 in (219 mm) |
| Height To Top Of Overhead Guard | 7.58 ft in (2310 mm) |
| Max Fork Height | 13.51 ft in (4117 mm) |
| Right Angle Stack | 15.31 ft in (4665 mm) |
| Turning Radius | 8.7 ft in (2650 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 47.25 in (1200 mm) |
| Lower Speed | _ - (24.6 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 11023.12 lb (5000 kg) |
| Lift Speed | _ - (15 m/min) |
Engine
| Engine Make | 2365 |
| Power | 22.3 hp (16.6 kw) |
| Fuel Type | mosfet |
Operational
| Operating Weight | 15322.2 lb (6950 kg) |
| Tire Type | front 250/15 rear 7.00-12 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.1 mph (13 km/h) |
