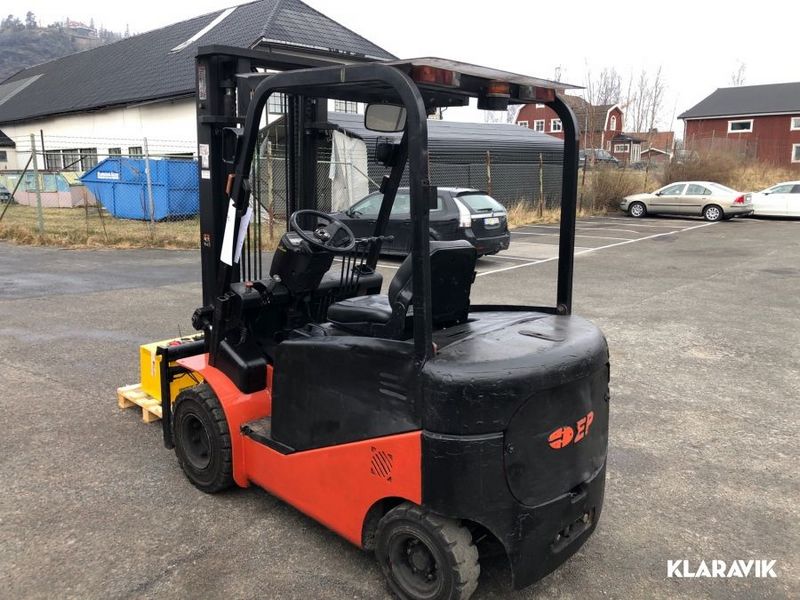

EP CPD25J
Contents:
Dimensions
| Length To Fork Face | 7.63 ft in (2325 mm) |
| Overall Width | 4.16 ft in (1265 mm) |
| Overall Height - Mast Lowered | 6.8 ft in (2070 mm) |
| Wheelbase | 4.88 ft in (1485 mm) |
| Ground Clearance | 4.73 in (120 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 13.26 ft in (4040 mm) |
| Right Angle Stack | 13.16 ft in (4010 mm) |
| Turning Radius | 6.86 ft in (2090 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 40.87 in (1038 mm) |
| Lower Speed | 82.68 ft/min (25.2 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Lift Speed | 53.15 ft/min (16.2 m/min) |
Engine
| Engine Make | 2366 |
| Power | 9.4 hp (7 kw) |
| Fuel Type | electric motor |
Operational
| Operating Weight | 9215.4 lb (4180 kg) |
| Tire Type | front 23x9-10 rear 18x7-8 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.5 mph (12 km/h) |
