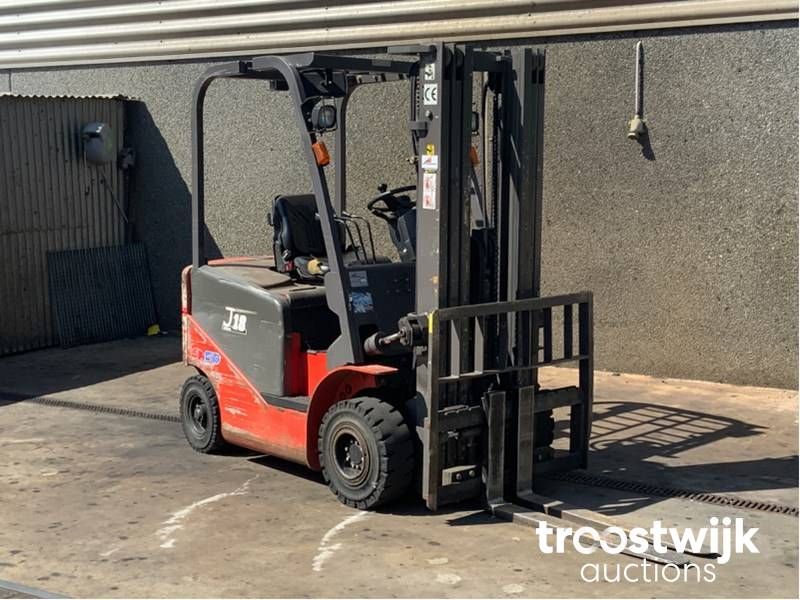

EP CPD18J
Contents:
Dimensions
| Length To Fork Face | 6.94 ft in (2115 mm) |
| Overall Width | 3.74 ft in (1138 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.53 ft in (1380 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.81 ft in (2075 mm) |
| Max Fork Height | 12.92 ft in (3935 mm) |
| Right Angle Stack | 12.11 ft in (3690 mm) |
| Turning Radius | 5.96 ft in (1815 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 39.38 in (1000 mm) |
| Lower Speed | 92.52 ft/min (28.2 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3858.09 lb (1750 kg) |
| Lift Speed | 56.11 ft/min (17.11 m/min) |
Engine
| Engine Make | 2366 |
| Power | 7.3 hp (5.4 kw) |
| Fuel Type | electric motor |
Operational
| Operating Weight | 6812.3 lb (3090 kg) |
| Tire Type | front 21x8-9 rear 5.00-8 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.8 mph (12.5 km/h) |
