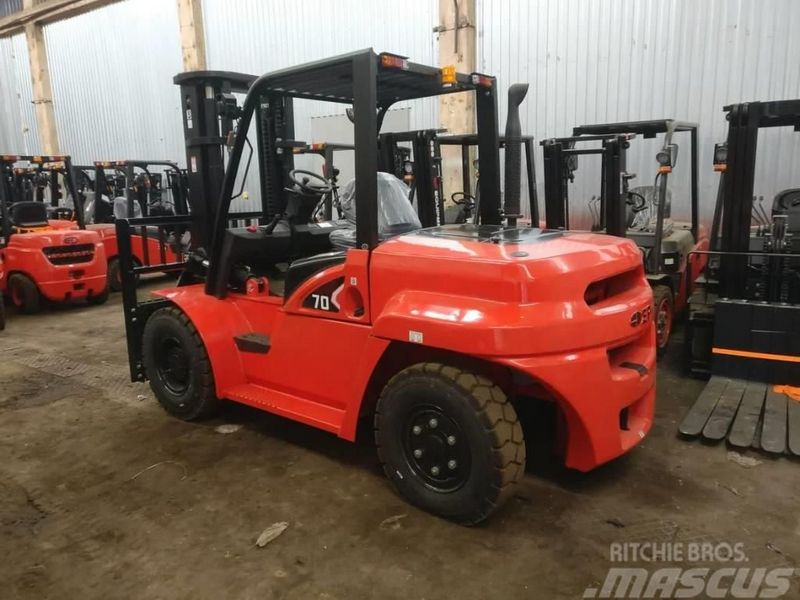

EP CPCD70
Contents:
Dimensions
| Length To Fork Face | 11.82 ft in (3600 mm) |
| Overall Width | 6.53 ft in (1990 mm) |
| Overall Height - Mast Lowered | 8.21 ft in (2500 mm) |
| Wheelbase | 7.39 ft in (2250 mm) |
| Ground Clearance | 6.7 in (170 mm) |
| Height To Top Of Overhead Guard | 7.49 ft in (2280 mm) |
| Max Fork Height | 14.51 ft in (4420 mm) |
| Right Angle Stack | 12.78 ft in (3895 mm) |
| Turning Radius | 10.5 ft in (3200 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 15432.36 lb (7000 kg) |
| Max Fork Spread | 60.24 in (1530 mm) |
| Load Center | 23.63 in (600 mm) |
| Lift Speed | _ - (20.4 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 6BG1QP |
| Power | 113.5 hp (84.6 kw) |
| Torque | 303.2 lb ft (411 Nm) |
| Displacement | 396.3 cu in (6.5 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 20503 lb (9300 kg) |
| Tire Type | front 8.25-15-14PR rear 8.25-15-14PR |
| Max Speed | 15 mph (24 km/h) |
